1. Product Positioning

A standard 15-inch 1080 × 1920 (2K) infrared flat touch display designed for clear image output, stable touch control and embedded equipment integration. It features a 4:3 display ratio, infrared touch technology and a reinforced metal structure, making it suitable for industrial control equipment, self-service equipment, information display systems and customized embedded applications.

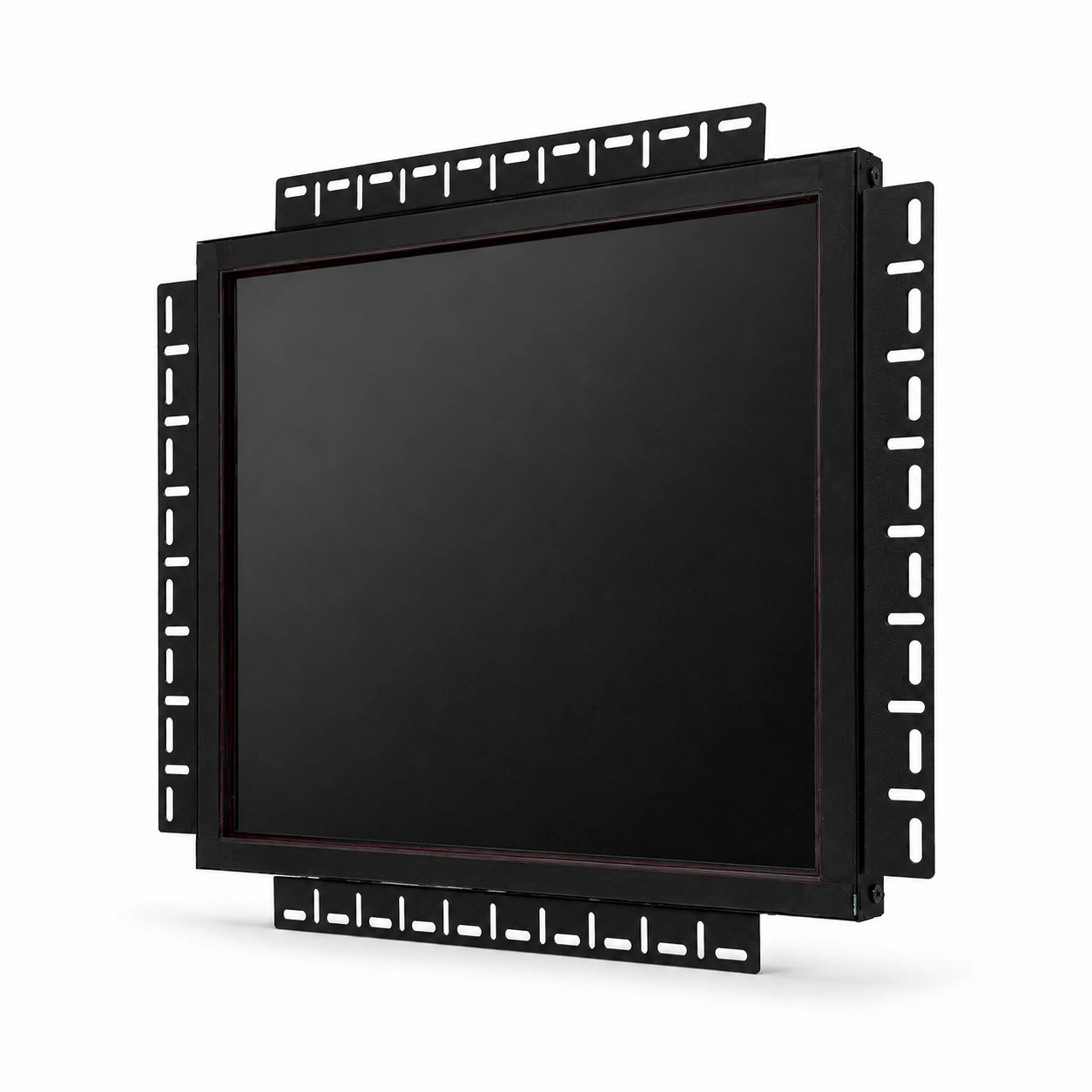

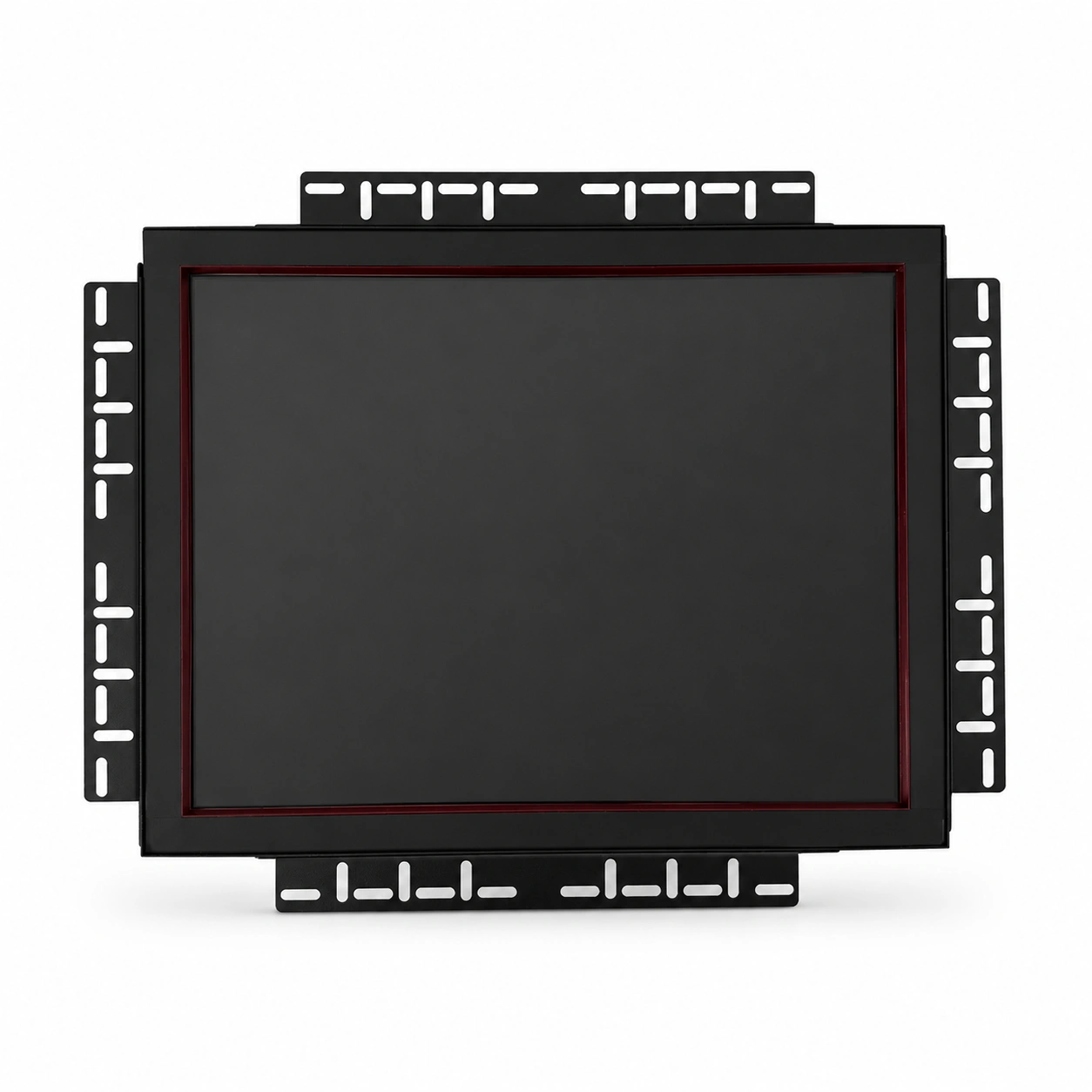

2. 4:3 Flat Open-Frame Design

The product adopts a 4:3 flat display structure with an open-frame design. The front panel is simple and compact, while the surrounding metal mounting brackets make it convenient for embedded installation or integration into customer equipment. The flat structure helps the product fit into control panels, machine cabinets and customized display terminals.

3. Infrared Touch Technology

Equipped with infrared touch technology, the display supports accurate touch positioning, fast response and stable operation. The touch structure is suitable for tap, swipe and basic interactive control, providing reliable operation for commercial and industrial applications. Touch points can be configured according to the project requirement.

4. 2K Clear Display

This model uses a 15-inch 4:3 LCD panel with 2K resolution for clear image presentation and detailed display performance. The screen is suitable for equipment operation interfaces, monitoring systems, information display pages and customized control software.

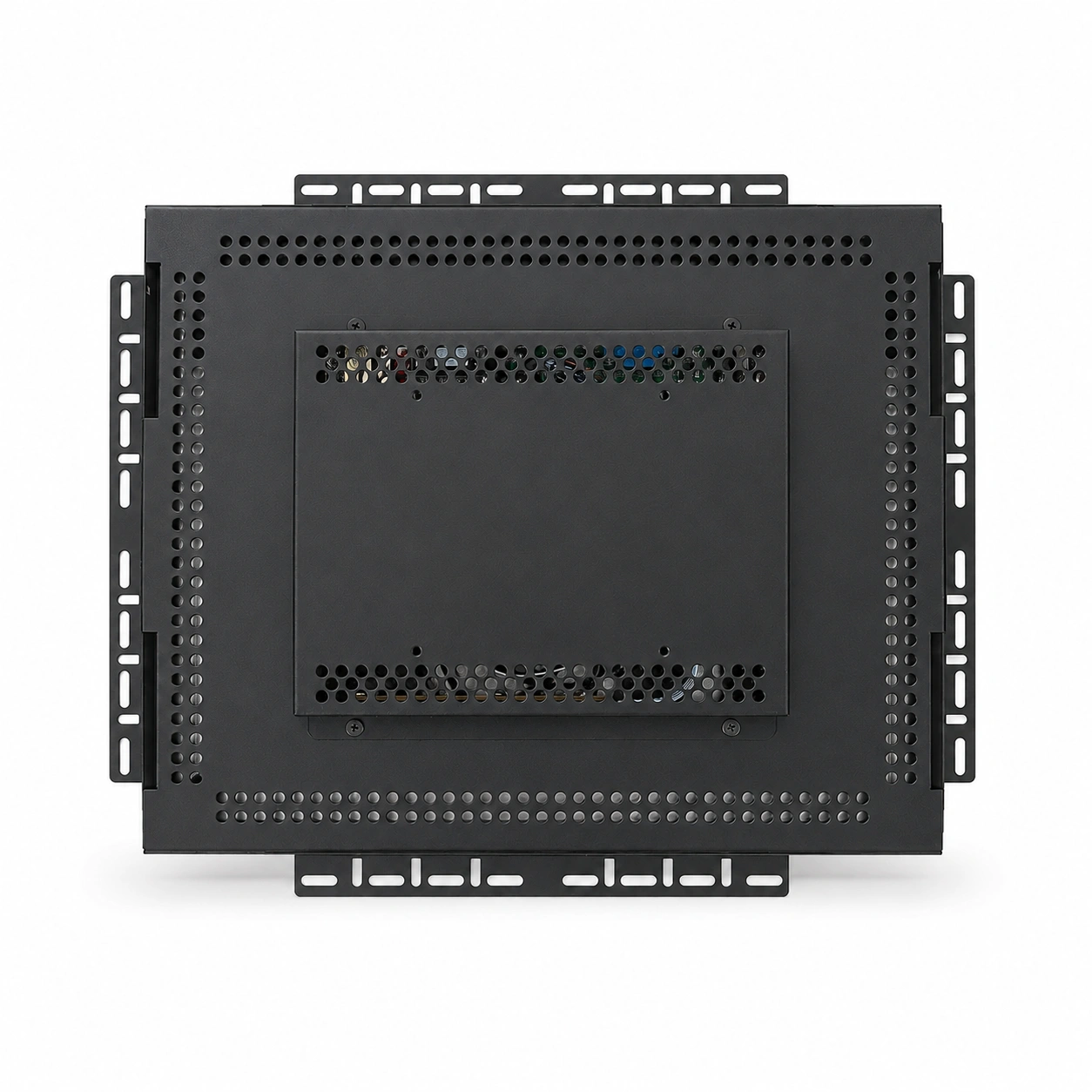

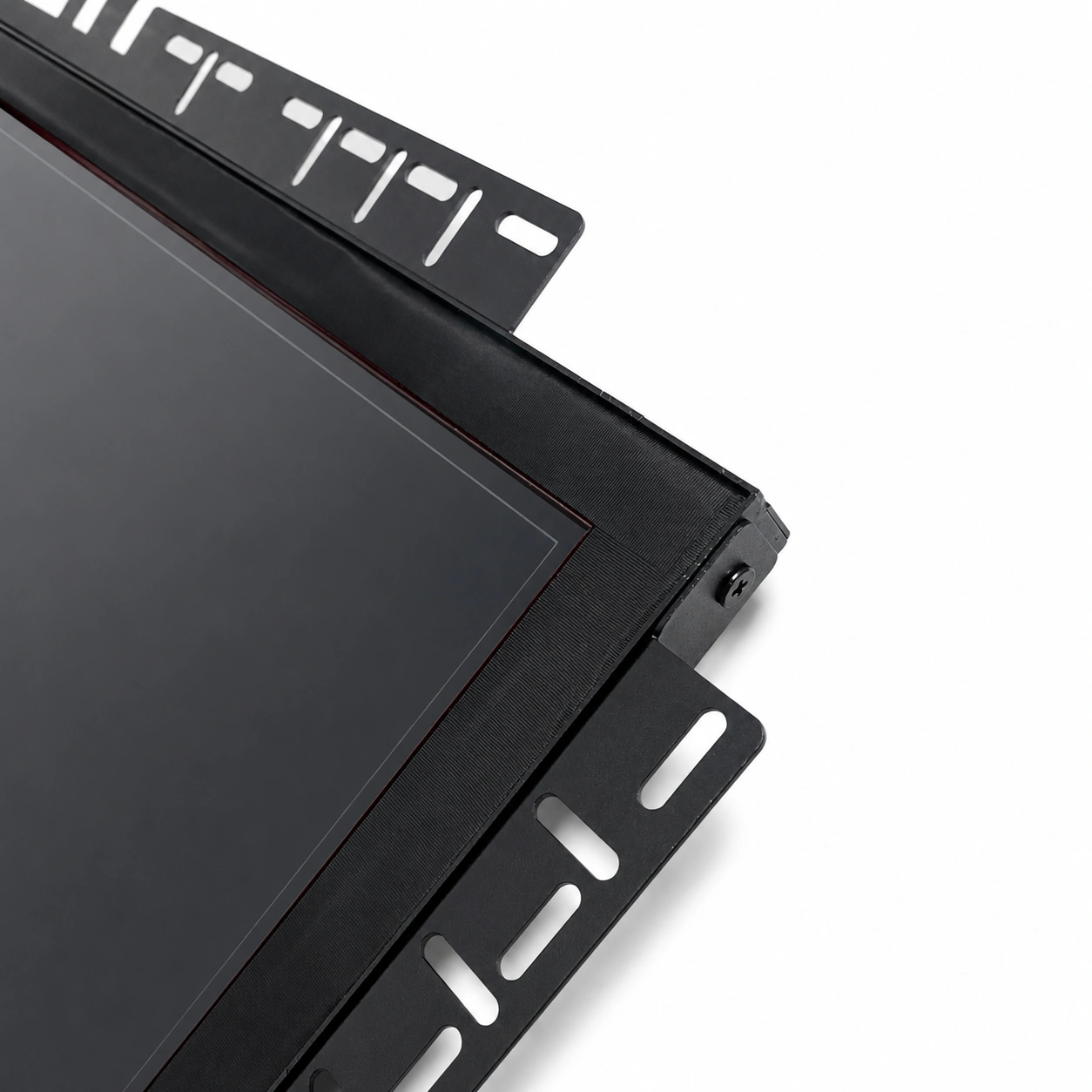

5.Industrial-Grade Metal Housing

The product is built with a reinforced metal housing and open-frame mounting structure. The rear metal cover provides good structural strength, heat dissipation and installation stability. Ventilation holes, side brackets and rear mounting holes support long-term equipment integration and commercial use.

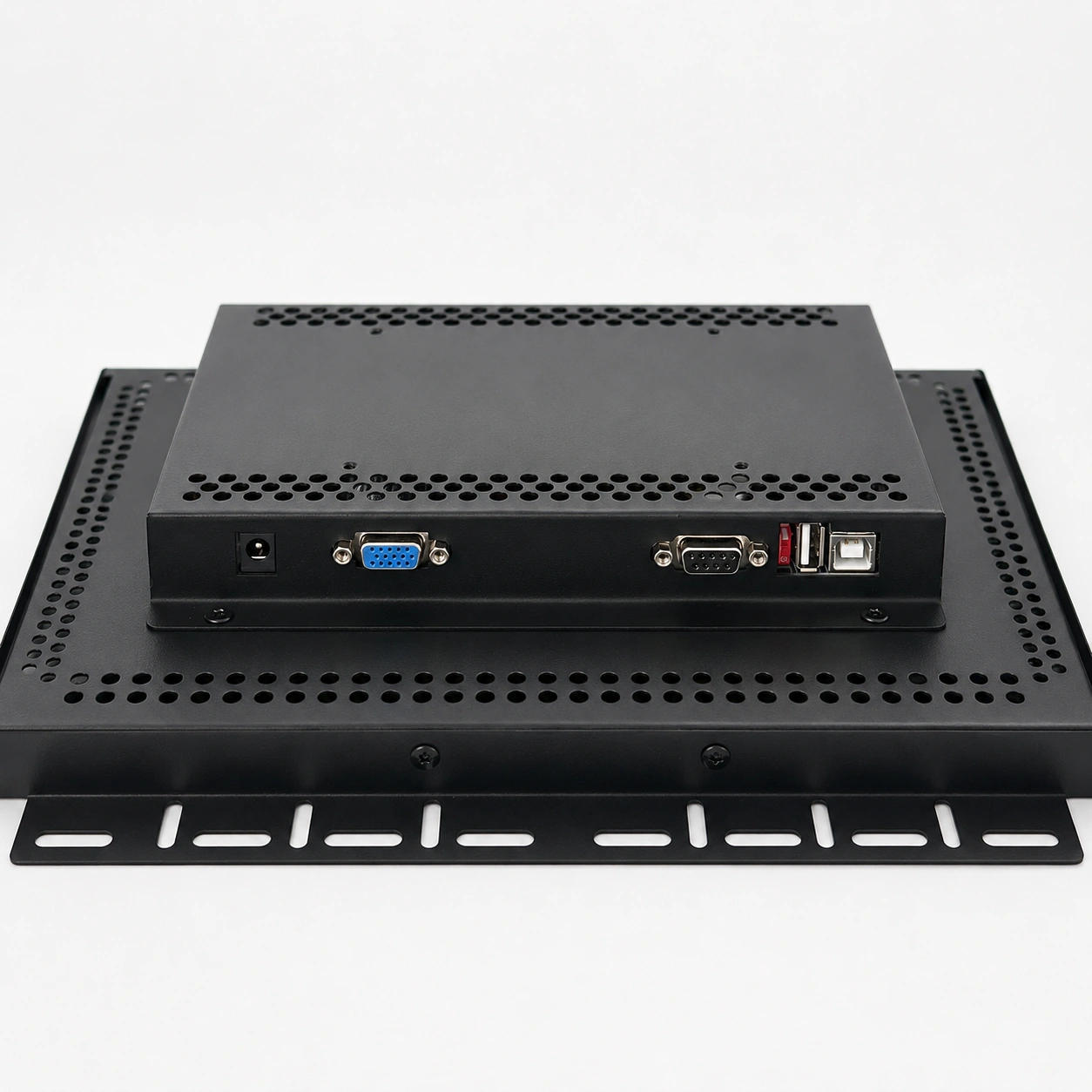

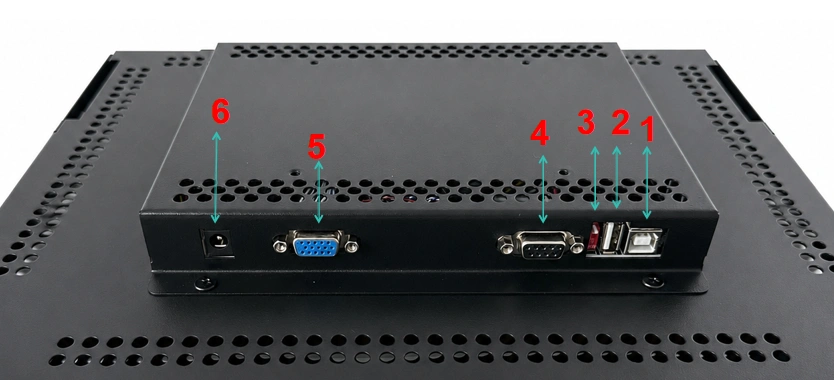

6. Interface Introduction

1. USB Touch Port 1 2. USB Touch Port 2 3. Dip switch 4.RS232 Touch Port 5.VGA Signal 6. DC Power Input

7. Product Specifications

LCD Panel Specifications

Screen Size: 15 inch Aspect Ratio: 4:3 Backlight: LED Backlight Life: 50,000+ hours Resolution: 1080 × 1920 (2K) Brightness: 300 cd/m² Contrast Ratio: 1200:1 Response Time: 5 ms Pixel Pitch: 0.27963 (H) × 0.27963 (V) mm Color: 1.07B Viewing Angle: Full viewing angle, horizontal/vertical

Infrared Touch Specifications

Touch Solution ： Projected G+FF capacitive touch technology Response Time ： <5 ms Touch Points ： point touch optional Scanning Accuracy ： 4096 × 4096 Communication ： Full-speed USB2.0, USB3.0 Theoretical Clicks ： 60 million+ Light Resistance ： Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes Touch Data Output ： Coordinate output Surface Hardness ： Tempered glass, Mohs 7 explosion-proof glass OS Compatibility： Android / Windows Driver ： Driver-free, plug and play Protocol ： 3M TTL HID RS232 Product accessories: Power cord 1.5m, Adapter*1，VGA 1.5m, USB 1.5m, touch cable 1.5m,

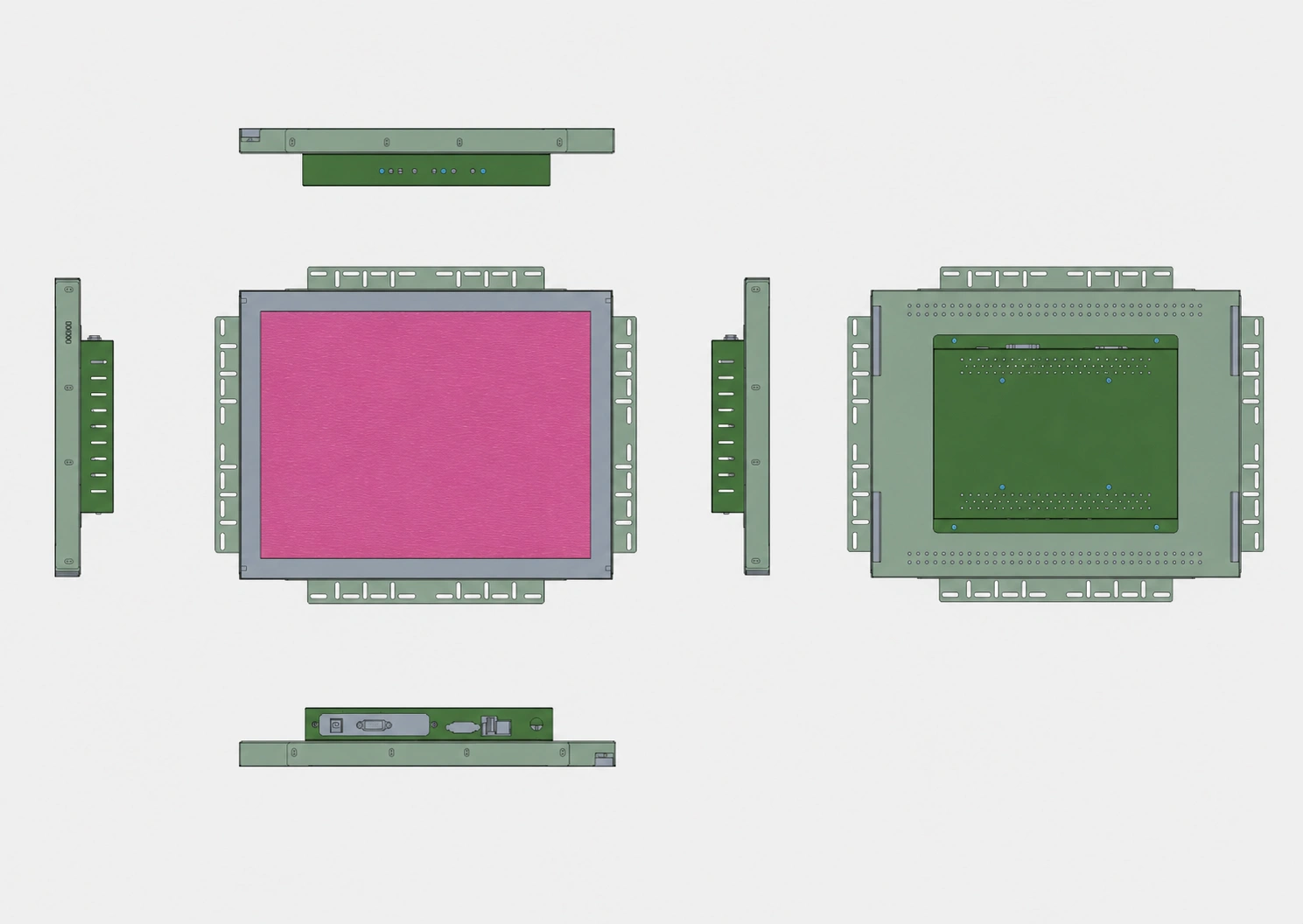

8. Product Dimensions & Installation Drawing

Overall Dimensions Width: 347.00 mm Height: 271.00 mm Display ratio: 4:3 Structure: Flat open-frame design Installation envelope reference: 391.00 × 315.00 mm Note: The larger size includes the external mounting brackets.

Side & Thickness Overall thickness: 53.00 mm Front body thickness: 23.00 mm Rear box protrusion: 30.00 mm Rear box height reference: 160.00 mm Top / bottom spacing reference: 55.50 mm

Installation Reference Rear box size reference: 230.00 × 160.00 mm Mounting hole: M4 Mounting hole reference: 100.00 × 100.00 mm Suitable for embedded installation, rear mounting and equipment integration.

Mechanical Structure Structure: Metal housing with open-frame brackets Installation Method: Embedded / rear mounting / bracket mounting Cooling Design: Rear ventilation holes Color: Black Application: Industrial equipment / control terminal / embedded display system
