1. Product Positioning

This product is a 19-inch and 22-inch 1080*1920 （2K）touch monitor with an LED edge-lit frame. It combines display, touch control, and colorful LED lighting in one integrated design. It is suitable for gaming equipment, entertainment terminals, smart display devices, commercial terminals, and customized cabinet applications. With a stylish LED light frame and stable touch performance, the product helps improve the visual appeal and user interaction experience of the whole machine.

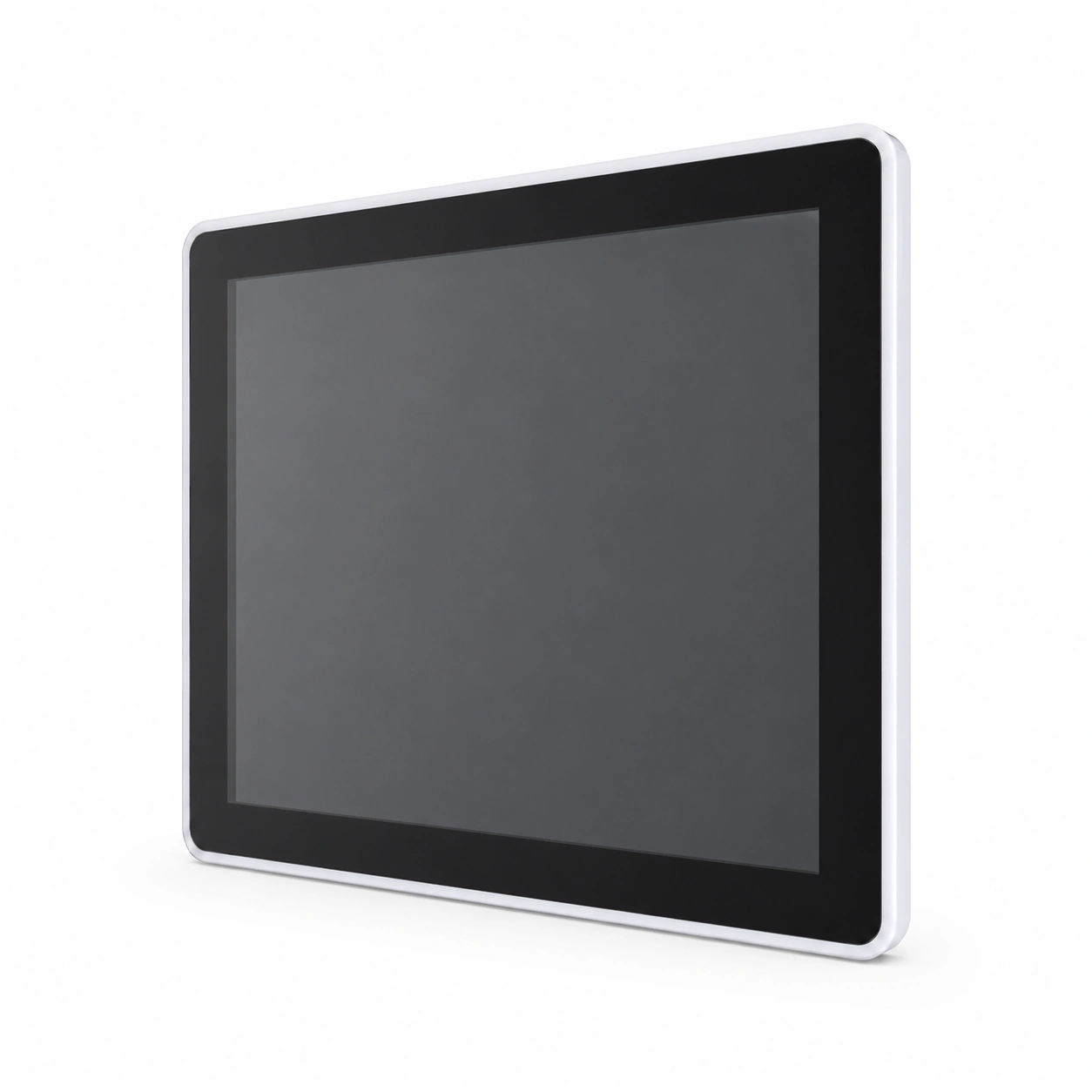

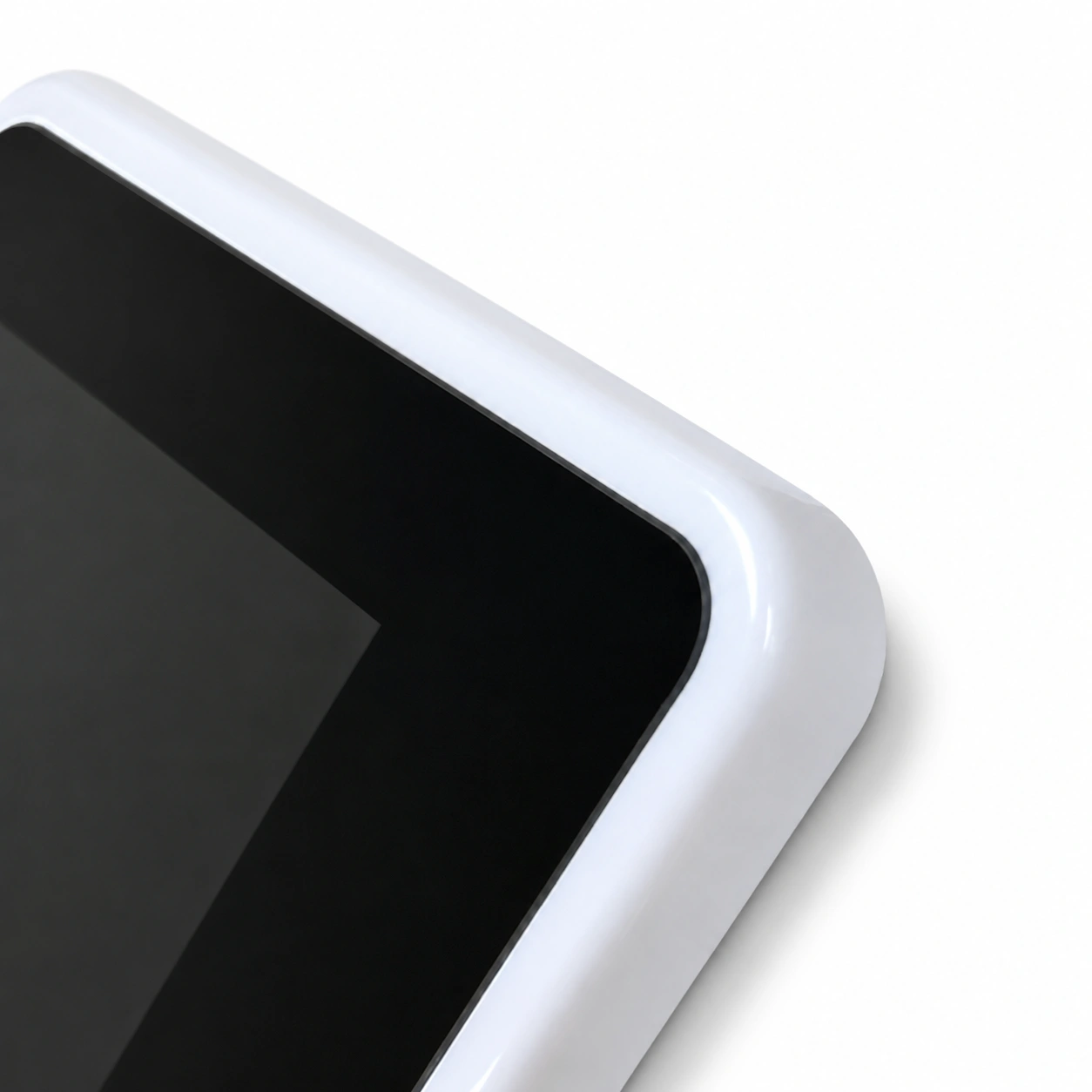

2. Product Design

The monitor adopts a flat front design with a black touch panel and an integrated LED light frame. The overall appearance is simple, modern, and technology-oriented. The slim front structure makes it suitable for embedded installation and customized equipment design. The product supports 19-inch and 22-inch size options, which can meet different customer project requirements.

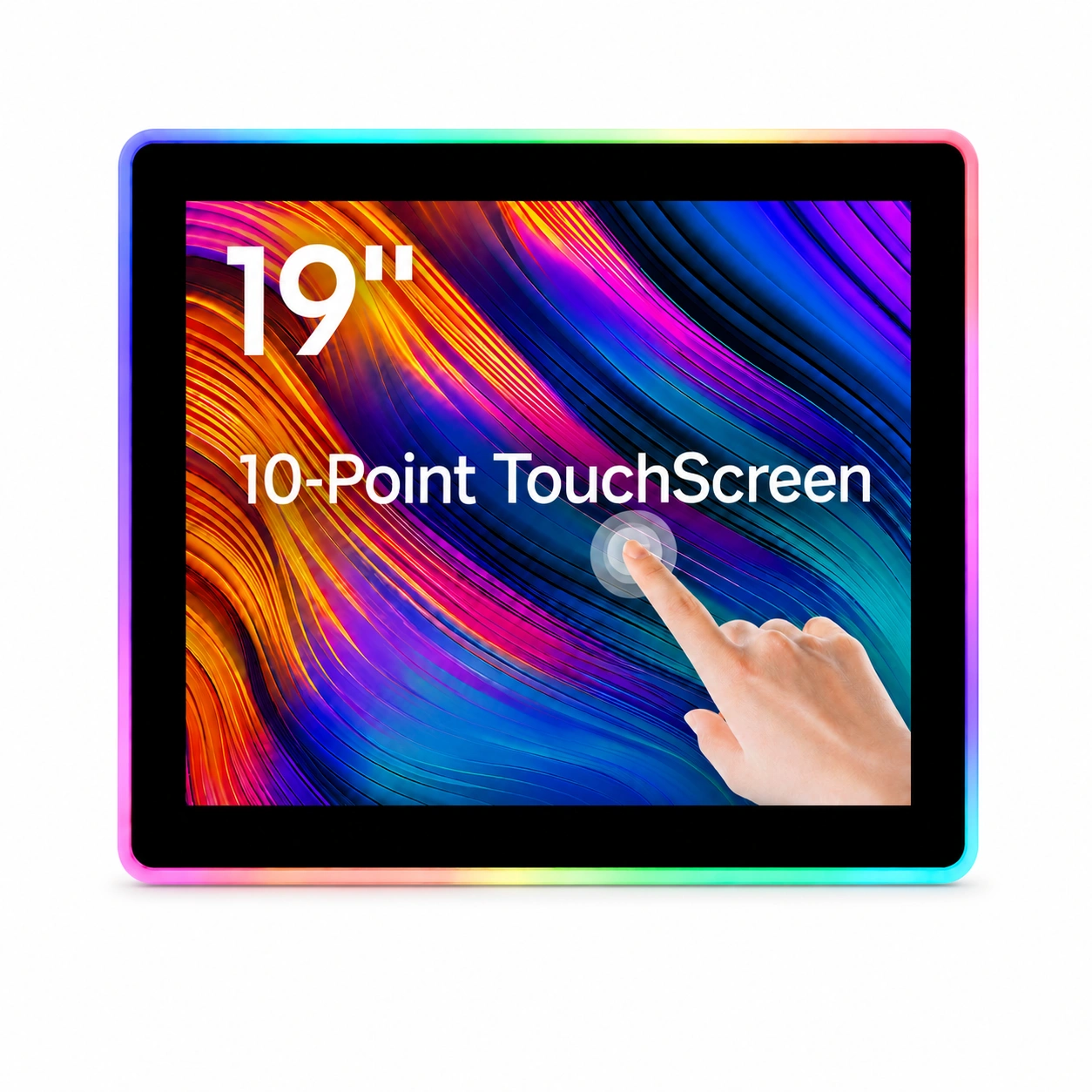

3. 10-Point Capacitive Touch

The product supports 10-point capacitive touch technology. It provides fast response, accurate positioning, and smooth touch operation. It supports common touch operations such as clicking and sliding. The touch performance is stable and suitable for frequent operation in commercial and entertainment equipment.

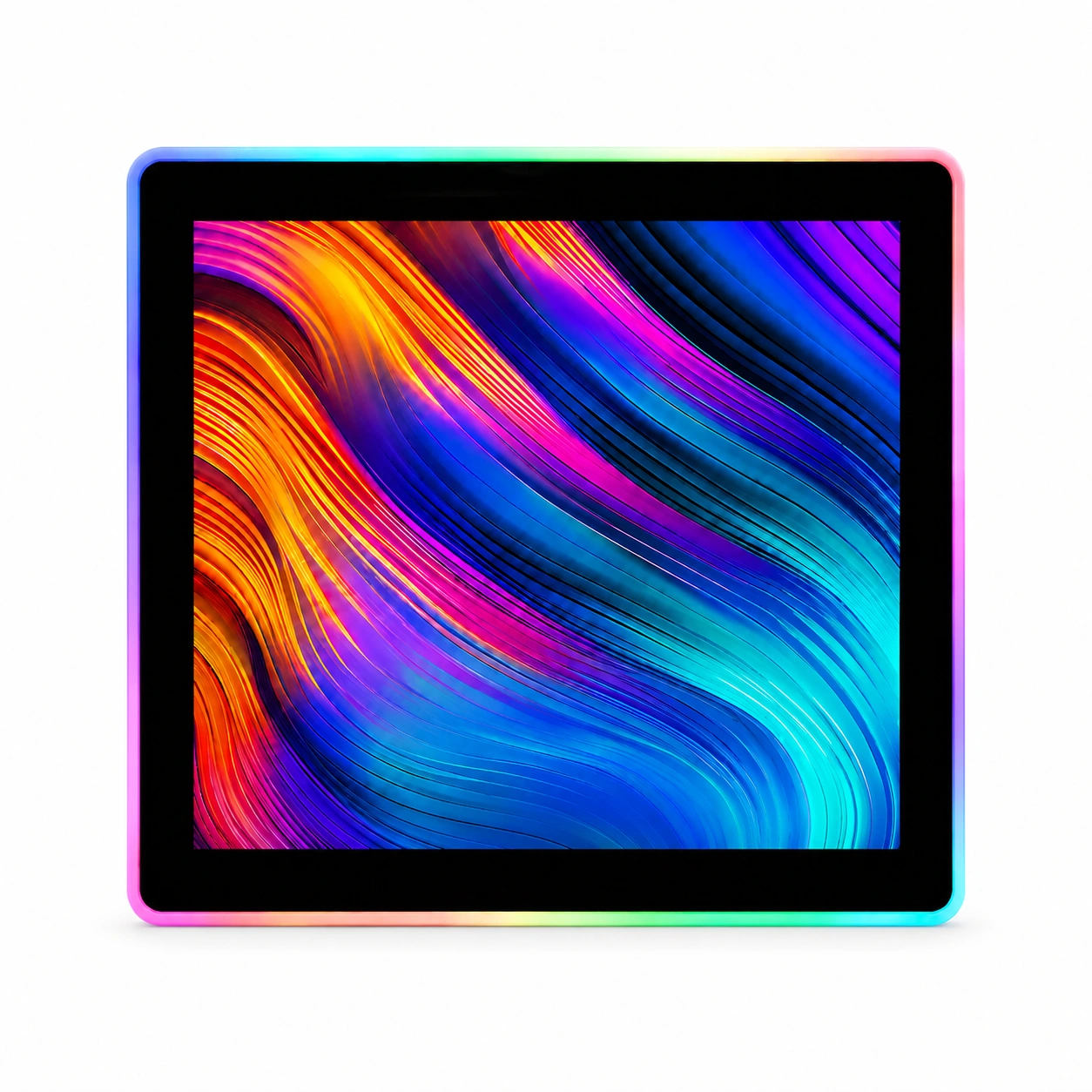

4. RGB Colorful Running Light Effect

The monitor features an RGB colorful running light effect around the frame. The dynamic LED lighting makes the product more eye-catching and enhances the visual appeal of the whole machine. It is suitable for gaming equipment, entertainment terminals, commercial display devices, and customized cabinet applications. The RGB lighting effect helps create a stronger technology and entertainment atmosphere, making the equipment more attractive in practical use.

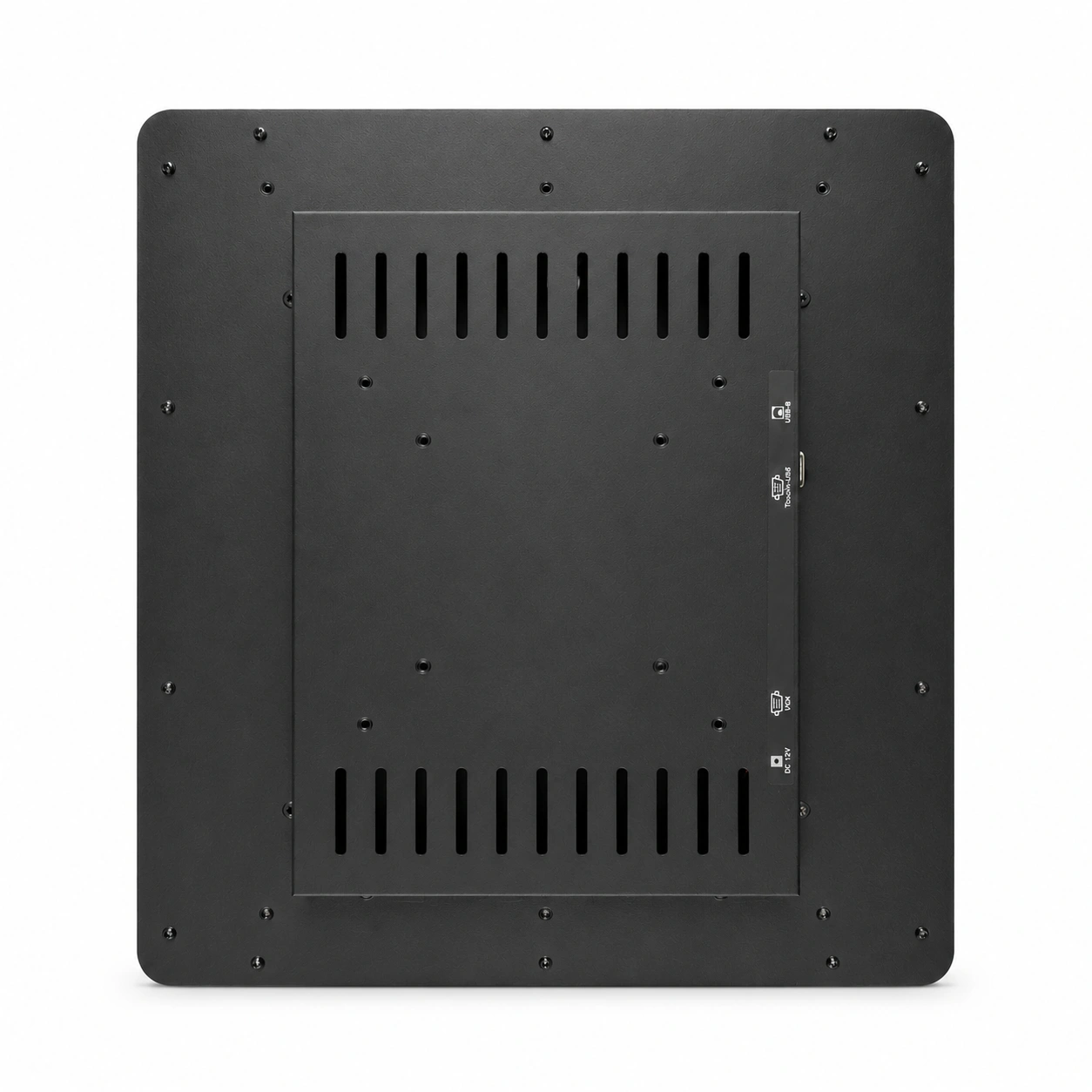

5. Industrial-Grade Metal Housing

The product uses an industrial-grade metal housing structure. The metal housing provides strong structural support, good durability, and stable performance for long-term use. It also helps improve heat dissipation and product protection, making the monitor suitable for commercial terminals, gaming equipment, entertainment devices, and customized cabinet applications.

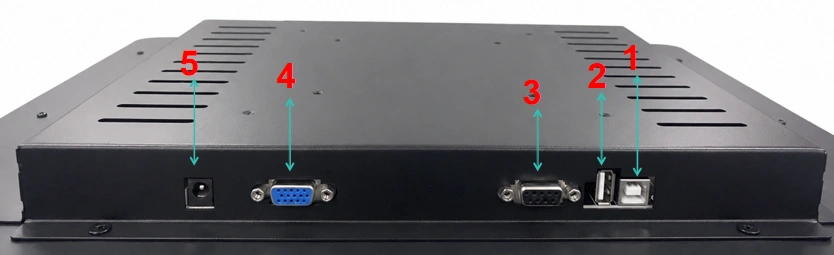

6. Interface Introduction

1. USB Touch Port 1 2. USB Touch Port 2 3. RS232 Touch Port 4. VGA Signal 5.DC Power Input

7. Product Specifications

LCD Panel Specifications

Screen Size: 19 inch Aspect Ratio: 16:9 Backlight: LED Backlight Life: 50,000+ hours Resolution: 1080 × 1920 (2K) Brightness: 300 cd/m² Contrast Ratio: 1200:1 Response Time: 5 ms Pixel Pitch: 0.27963 (H) × 0.27963 (V) mm Color: 1.07B Viewing Angle: Full viewing angle, horizontal/vertical

Capacitive Touch Specifications

Touch Solution ： Projected G+FF capacitive touch technology Response Time ： <5 ms Touch Points ： Standard 10-point touch, supports image zoom i Scanning Accuracy ： 4096 × 4096 Communication ： Full-speed USB2.0, USB3.0 Theoretical Clicks ： 60 million+ Light Resistance ： Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes Touch Data Output ： Coordinate output Surface Hardness ： Tempered glass, Mohs 7 explosion-proof glass OS Compatibility： Android / Windows Driver ： Driver-free, plug and play Protocol ： 3M TTL HID RS232 Product accessories: Power cord 1.5m, VGA 1.5m, HDMI 1.5m, USB 1.5m, touch cable 1.5m, LED remote control,Six screws(6*12)

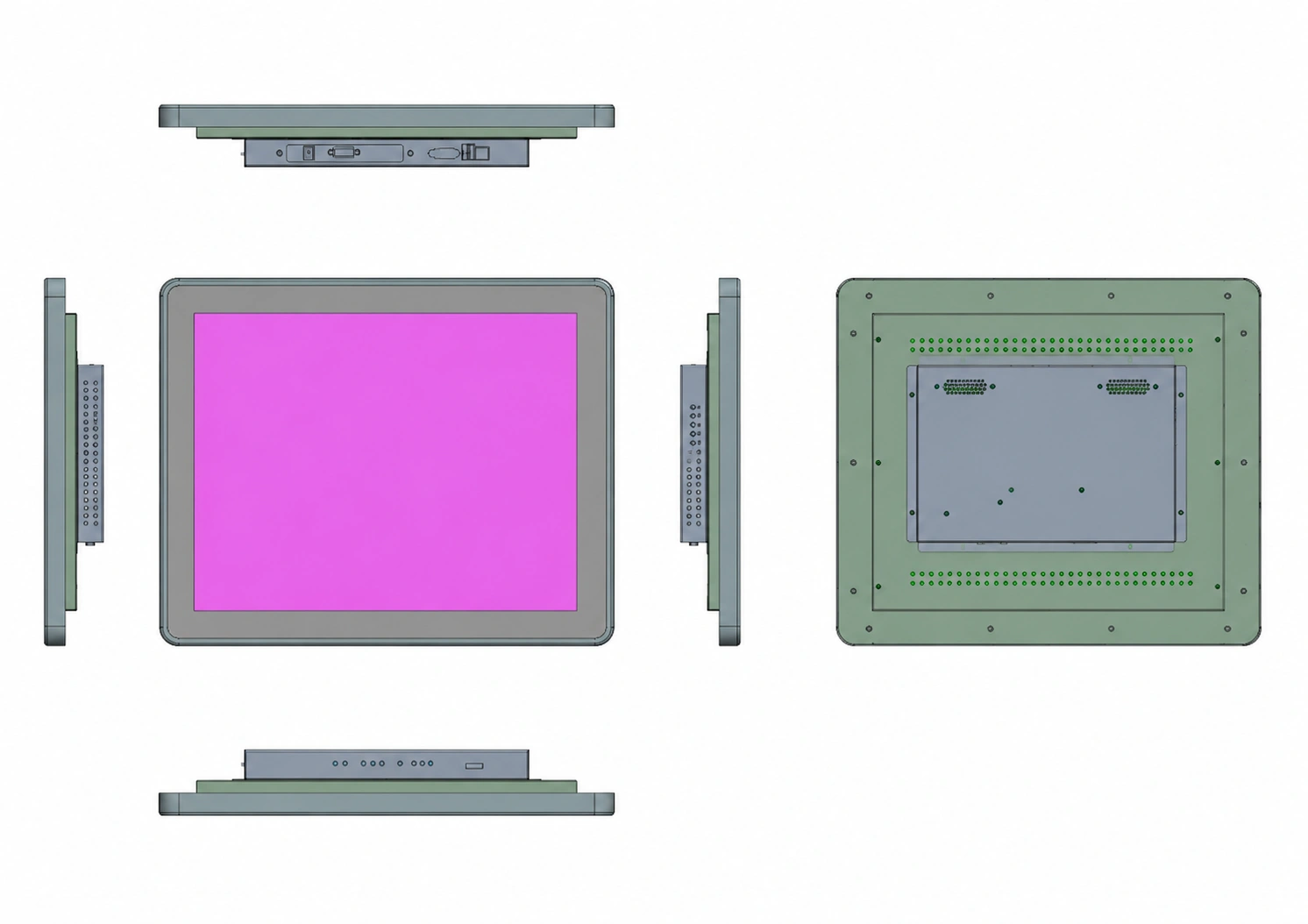

8. Product Dimensions & Installation Drawing

Mechanical Dimensions Overall Dimensions Width: 447.00 mm Height: 371.50 mm Corner Radius: R20.00

Side & Thickness Thickness (Main Body): 49.65 mm Upper Clearance: 36.10 mm Lower Clearance: 69.65 mm Side Offset: 20.50 mm / 31.80 mm Total Structural Depth Reference: 59.80 mm

Installation Reference Mounting Type: Embedded / Rear Mounting Compatible Rear Mounting Plate Size: 360.00 mm × 280.00 mm Mounting Hole Standard: M4 Mounting Hole Spacing: 75.00 mm / 100.00 mm grid Installation Clearance: Standard rear embedded design

Mechanical Features Industrial-grade embedded structure design Rear housing reinforced metal chassis for high stability Standardized screw-hole layout for flexible installation Compatible with rear-mounted and embedded installation methods Optimized thermal design through ventilation slot layout
