Screen Size :27″32″43″49″
Touch Type :PCAP capacitive
Touch Points :10-point touch
Resolution :1920 x 1080
Brightness :300 cd/m
Aspect Ratio :16:9
Interface :HDMI/DVI/VGA
protocol :3M TTL HID RS232
Housing Material :Metal housing
Custom Service : YES
Product Type : LED Lighted Capacitive Touch Monitor
Size Engineering : Custom size development available
Display Resolution : HD / FHD / 2K / 4K (optional)
Touch Technology : Projected Capacitive Touch (10-point)
Touch Interface : USB Type-B
Video Input : DP/HDMI /DVI/ VGA (optional)
Frame Construction : Aluminum Alloy / Metal Housing
Mounting Method : VESA / Embedded / Wall-mount / Desktop Stand
Certifications : CE / FCC / RoHS / EMC / LVD
Operating Condition : Indoor / Semi-outdoor optional
Touch Glass : Thickness / anti-glare / anti-fingerprint optional
Structural Design : Flat / Curved / Open frame / Embedded / J-shape
Front Frame Color : Black / Silver / White / Custom color
Lighting System : RGB LED / Edge light / Perimeter light customization
Interface Engineering : USB / HDMI / VGA / RS232 / RS485 customization
Logo Integration : Silk print / metal logo / backlight logo optional
Packaging Solution : OEM carton / protective foam / drop-test packaging
Project Integration : Kiosk / industrial cabinet / commercial device integration

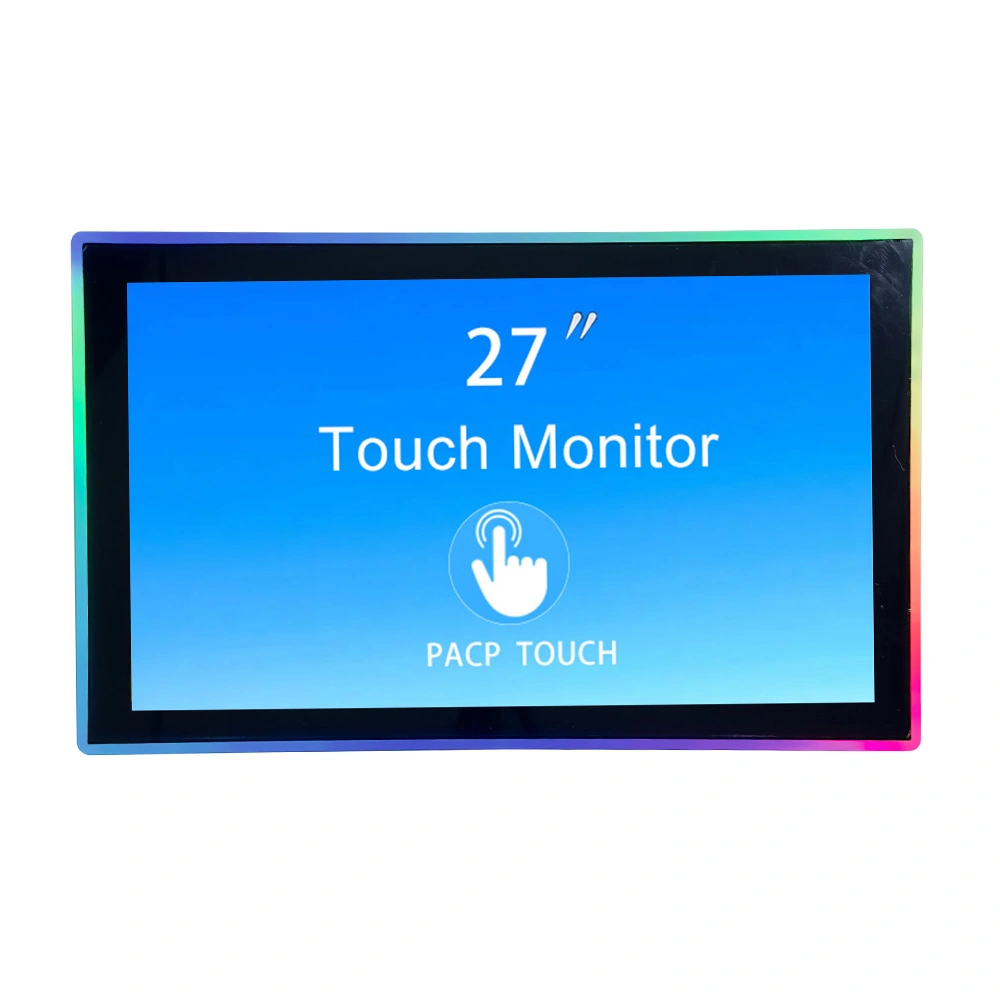

This 27-inch vertical (1080 × 1920 Full HD) LED-backlit touchscreen display is designed for modern interactive applications such as digital signage, smart kiosks, gaming interfaces, and self-service systems. With a sleek industrial-grade design and high-brightness visual performance, it delivers a premium user experience for commercial and industrial environments. It supports multiple communication protocols including 3M / TTL / HID / RS232, ensuring strong compatibility with different control systems and integration platforms
The display adopts a modern flat-panel structure with ultra-thin bezels, providing a clean and immersive visual experience. Its vertical portrait orientation is optimized for content-driven applications such as advertisements, menus, queue systems, and interactive terminals. The LED RGB edge lighting enhances visual appeal, making the product more attractive in commercial environments such as retail stores, exhibitions, and gaming zones.

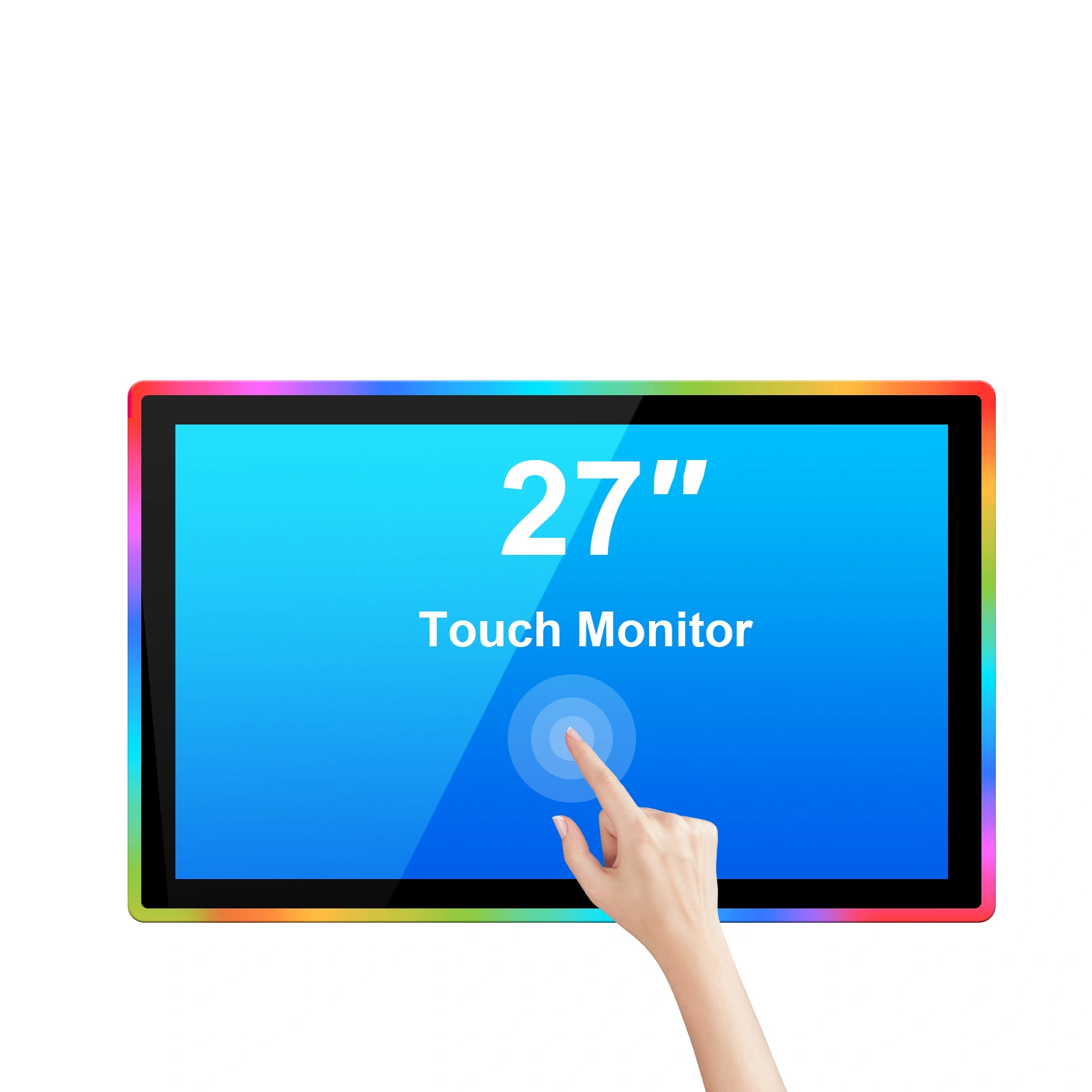

Equipped with advanced 10-point capacitive multi-touch technology, the screen supports smooth and highly responsive interaction. Key features: Fast touch response with high accuracy Supports multi-user interaction Anti-interference and stable performance Durable for continuous industrial use This ensures seamless operation for both commercial and self-service applications.
The integrated RGB dynamic lighting system delivers a visually striking “running light” effect around the frame. It enhances the product’s modern and premium appearance, especially in low-light environments. Lighting features: Multi-color RGB dynamic transitions Adjustable lighting modes (based on system control) Enhances branding and visual attraction Ideal for gaming and entertainment environments

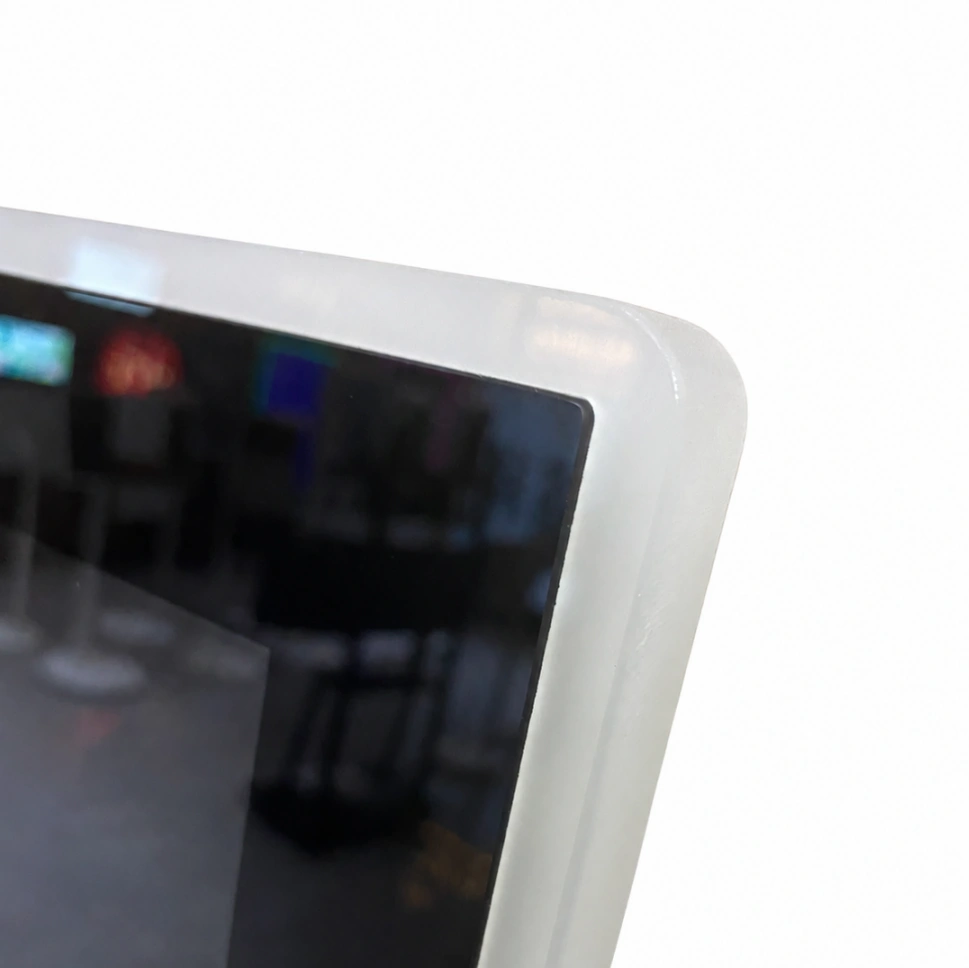

The display is built with a high-strength industrial aluminum alloy frame, ensuring durability and stability in demanding environments. Advantages: Strong anti-corrosion and heat dissipation performance Reinforced structure for long-term operation Suitable for 24/7 commercial use Professional embedded or mounting installation support This makes it ideal for kiosks, industrial control systems, and commercial display solutions.
1. 110/220V Power Input 2. Touch Direction Switch 3. RS232 Touch Port 4. Touch Direction Indicator 5.USB Touch Port 1 6. USB Touch Port 2 7. HDMI Signal 8. DVI Signal 9. VGA Signal 10. Audio Output 11. Audio Input
LCD Panel Specifications
Screen Size: 27 inch Aspect Ratio: 16:9 Backlight: LED Backlight Life: 50,000+ hours Resolution: 1080 × 1920 (2K) Brightness: 300 cd/m² Contrast Ratio: 1200:1 Response Time: 5 ms Pixel Pitch: 0.27963 (H) × 0.27963 (V) mm Color: 1.07B Viewing Angle: Full viewing angle, horizontal/vertical
Capacitive Touch Specifications
ouch Solution ： Projected G+FF capacitive touch technology Response Time ： <5 ms Touch Points ： Standard 10-point touch, supports image zoom i Scanning Accuracy ： 4096 × 4096 Communication ： Full-speed USB2.0, USB3.0 Theoretical Clicks ： 60 million+ Light Resistance ： Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes Touch Data Output ： Coordinate output Surface Hardness ： Tempered glass, Mohs 7 explosion-proof glass OS Compatibility： Android / Windows Driver ： Driver-free, plug and play Protocol ： 3M TTL HID RS232 Product accessories: Power cord 1.5m, VGA 1.5m, HDMI 1.5m, USB 1.5m, touch cable 1.5m, LED remote control,Six screws(6*12)

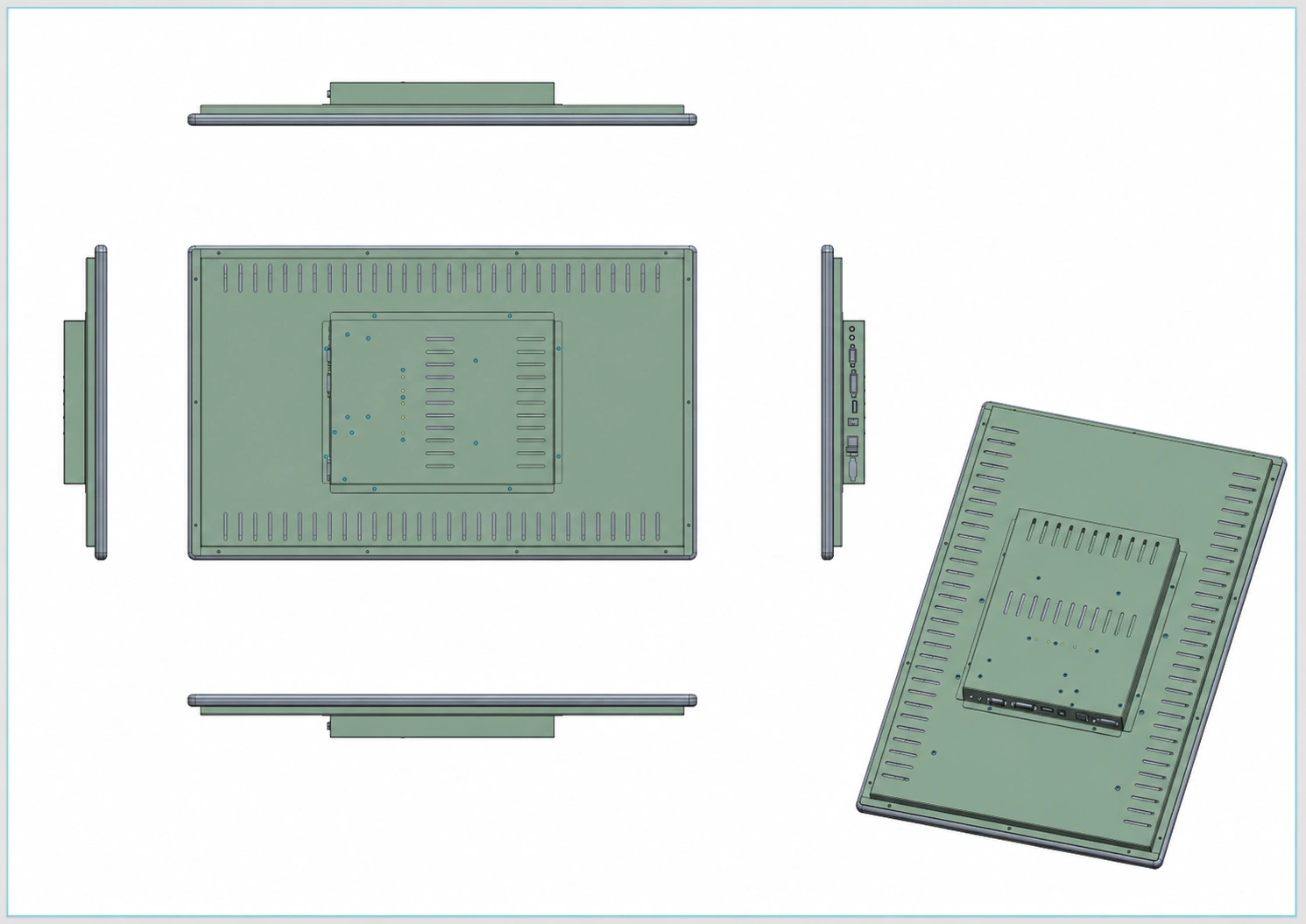

1. Overall Dimensions Width: 683 mm Height: 422 mm
2. Side & Thickness Overall Thickness: approx. 57 mm Side Profile Structure: Multi-layer industrial housing design (front display module + rear mounting cavity) Raised internal mounting structure height: approx. 17.2 mm Main internal enclosure depth: approx. 220 mm Slim edge bezel design for flush front appearance

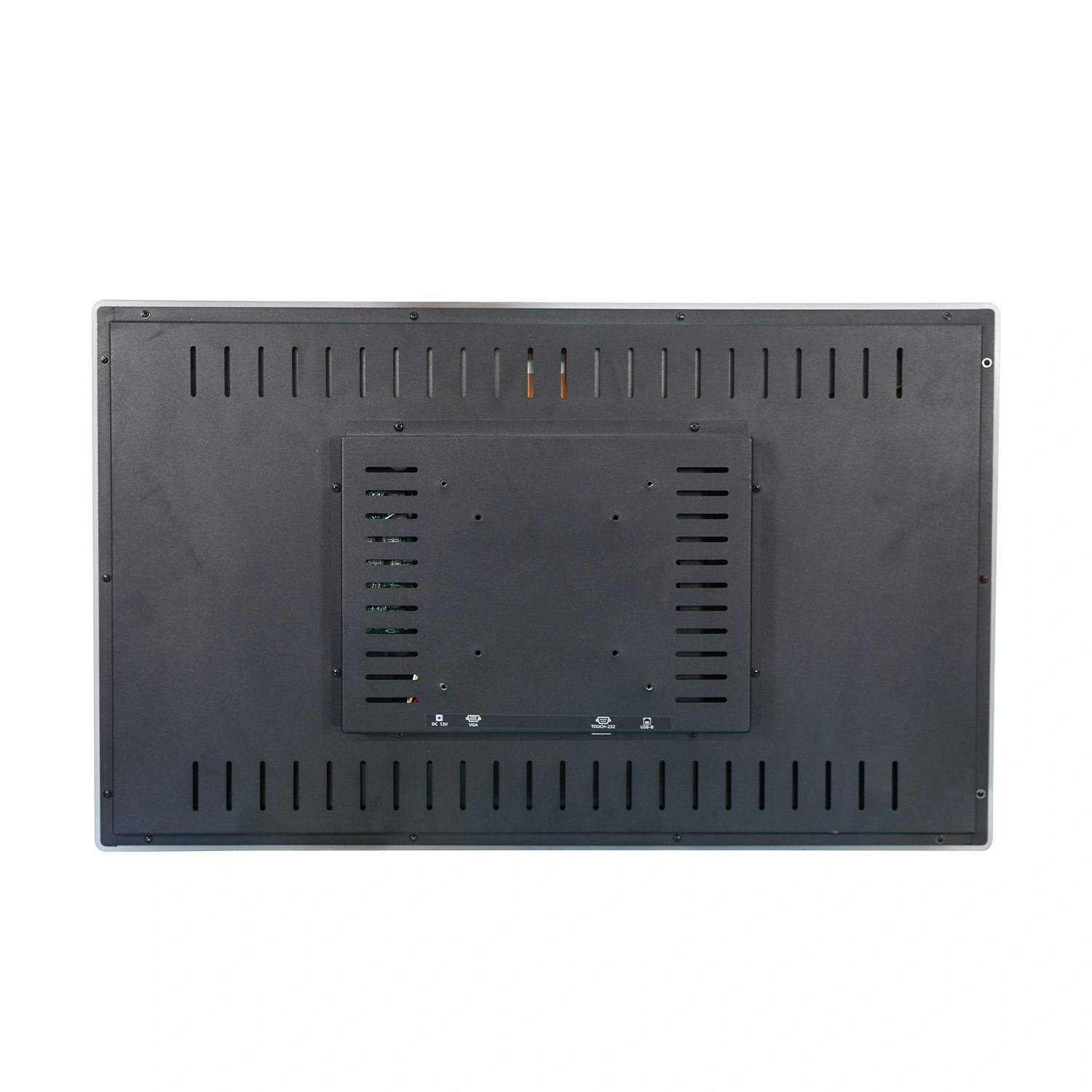

3.Installation Reference Mounting Type: Rear VESA / M5 screw mounting support Mounting Plate Standard: 200 × 200 mm VESA hole pattern Center Support Span: 300 mm installation reference zone Screw Type: M5 standard threaded holes Installation Method: Wall-mounted / bracket-mounted / embedded installation supported Structure Design: Rear-mounted central reinforcement plate for stable installation
Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.
Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.
Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.
Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.
Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.
When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating.
