Screen Size :15.6″18.5″21.5°23.8°27″32″
Touch Type :PCAP capacitive
Touch Points :10-point touch
Resolution :3840x 2160/32″4K
Brightness :300 cd/m
Aspect Ratio :16:9
Interface :DP/HDMI/DVI/VGA
protocol :3M TTL HID RS232
Housing Material :Metal housing
Custom Service : YES
Product Type : LED Lighted Capacitive Touch Monitor
Size Engineering : Custom size development available
Display Resolution : HD / FHD / 2K / 4K (optional)
Touch Technology : Projected Capacitive Touch (10-point)
Touch Interface : USB Type-B
Video Input : DP/HDMI /DVI/ VGA (optional)
Frame Construction : Aluminum Alloy / Metal Housing
Mounting Method : VESA / Embedded / Wall-mount / Desktop Stand
Certifications : CE / FCC / RoHS / EMC / LVD
Operating Condition : Indoor / Semi-outdoor optional
Touch Glass : Thickness / anti-glare / anti-fingerprint optional
Structural Design : Flat / Curved / Open frame / Embedded / J-shape
Front Frame Color : Black / Silver / White / Custom color
Lighting System : RGB LED / Edge light / Perimeter light customization
Interface Engineering : USB / HDMI / VGA / RS232 / RS485 customization
Logo Integration : Silk print / metal logo / backlight logo optional
Packaging Solution : OEM carton / protective foam / drop-test packaging
Project Integration : Kiosk / industrial cabinet / commercial device integration

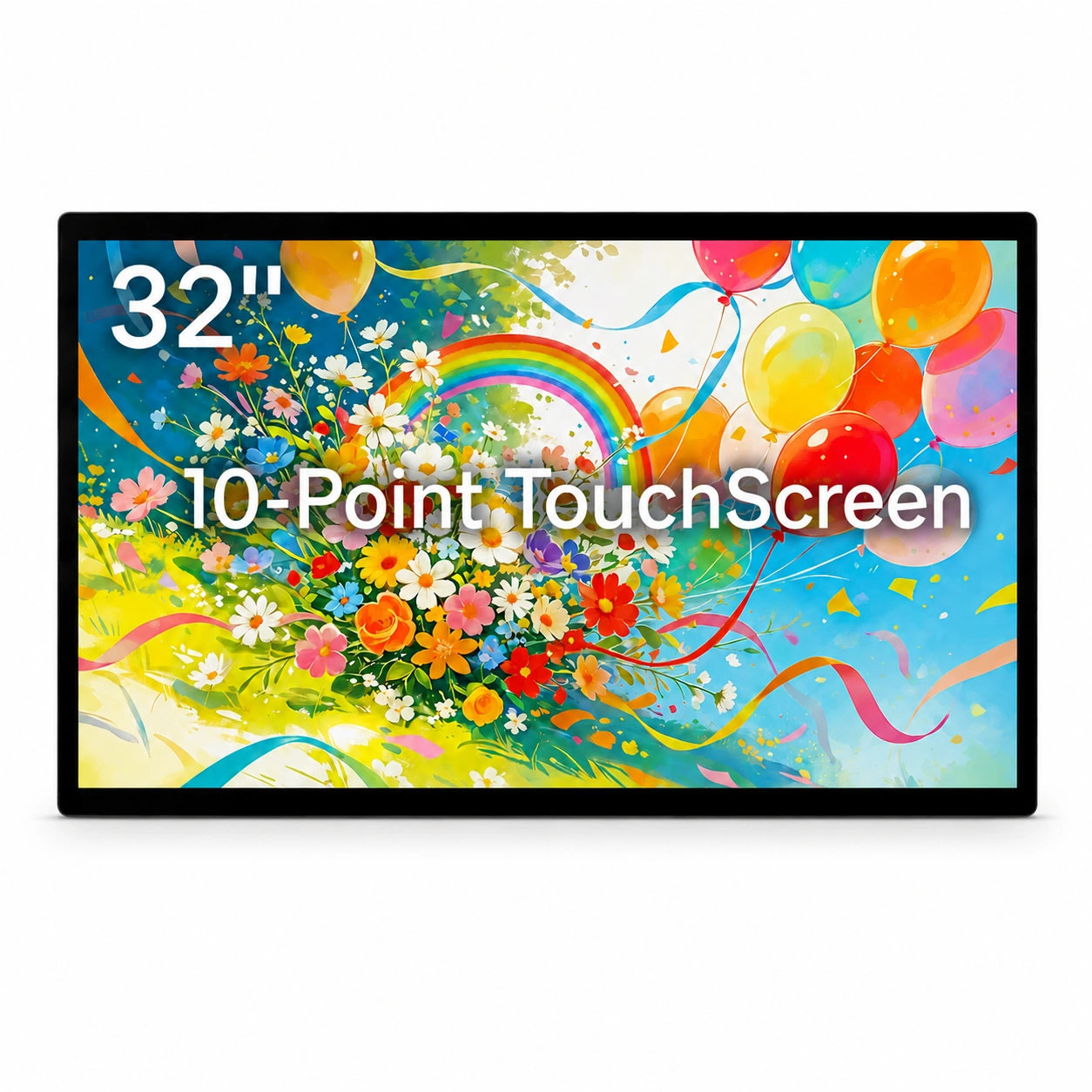

1. Product Positioning
A standard 32-inch 4K flat capacitive touch display designed for clear image output, reliable touch control and equipment integration. It focuses on basic display and touch functions, making it suitable for commercial display systems, control terminals, information display equipment and customized embedded applications.
2. Horizontal Flat Design
The horizontal 16:9 flat screen structure adopts an all-black equal-border appearance with a simple and professional visual style. It can be used as a standalone touch display or integrated into customer equipment according to the final installation requirements.
3. 10-Point Capacitive Touch
Equipped with projected capacitive touch technology, it supports accurate 10-point touch, fast response and smooth operation. Common gestures such as tap, swipe, drag and zoom can be supported depending on the system software.
4. Clear Display & Non-Lighted Frame Design
This model is a standard flat display without decorative LED lighting. The LED-backlit LCD panel provides clear image presentation, while the clean black frame keeps the appearance simple, stable and easy to integrate into different equipment designs.
5. Industrial-Grade Metal Housing
The reinforced metal housing provides good structural strength, heat dissipation and installation stability. Rear mounting holes, ventilation openings and the flat back-cover structure support long-term commercial operation and embedded integration.
6. Interface Introduction
1. 110/220V Power Input
2. DP Signal
3. HDMI Signal Input
4.audio
5. USB Touch Port 1
6. DC Power Input
7. RS232 Touch Port
8. Touch Direction Indicator
9. USB Touch Port 2
10. USB Touch Port 3
7. Product Specifications
LCD Panel & Display Specifications
Screen Size: 32 inch Display Type: Standard flat LCD display Aspect Ratio: 16:9 Backlight: LED backlight Resolution: 1080*1920 (2K) Brightness: 300 / cd/m² optional Contrast Ratio: 1200:1 typical Response Time: 5 ms typical Viewing Angle: Full viewing angle optional Appearance: All-black equal-border frame
Capacitive Touch Specifications
Touch Solution: Projected capacitive touch Response Time: <5 ms Touch Points: Standard 10-point touch Scanning Accuracy: 4096 × 4096 optional Communication: USB / RS232 optional Theoretical Clicks: 60 million+ optional Light Resistance: Works under common strong light changes Touch Data Output: Coordinate output Surface Hardness: Tempered glass, Mohs 7 optional OS Compatibility: Android / Windows / Linux optional Driver: Driver-free, plug and play Protocol: 3M / TTL / HID / RS232 optional Accessories: Power cable,power adapter，DP， HDMI, USB touch cable, screws

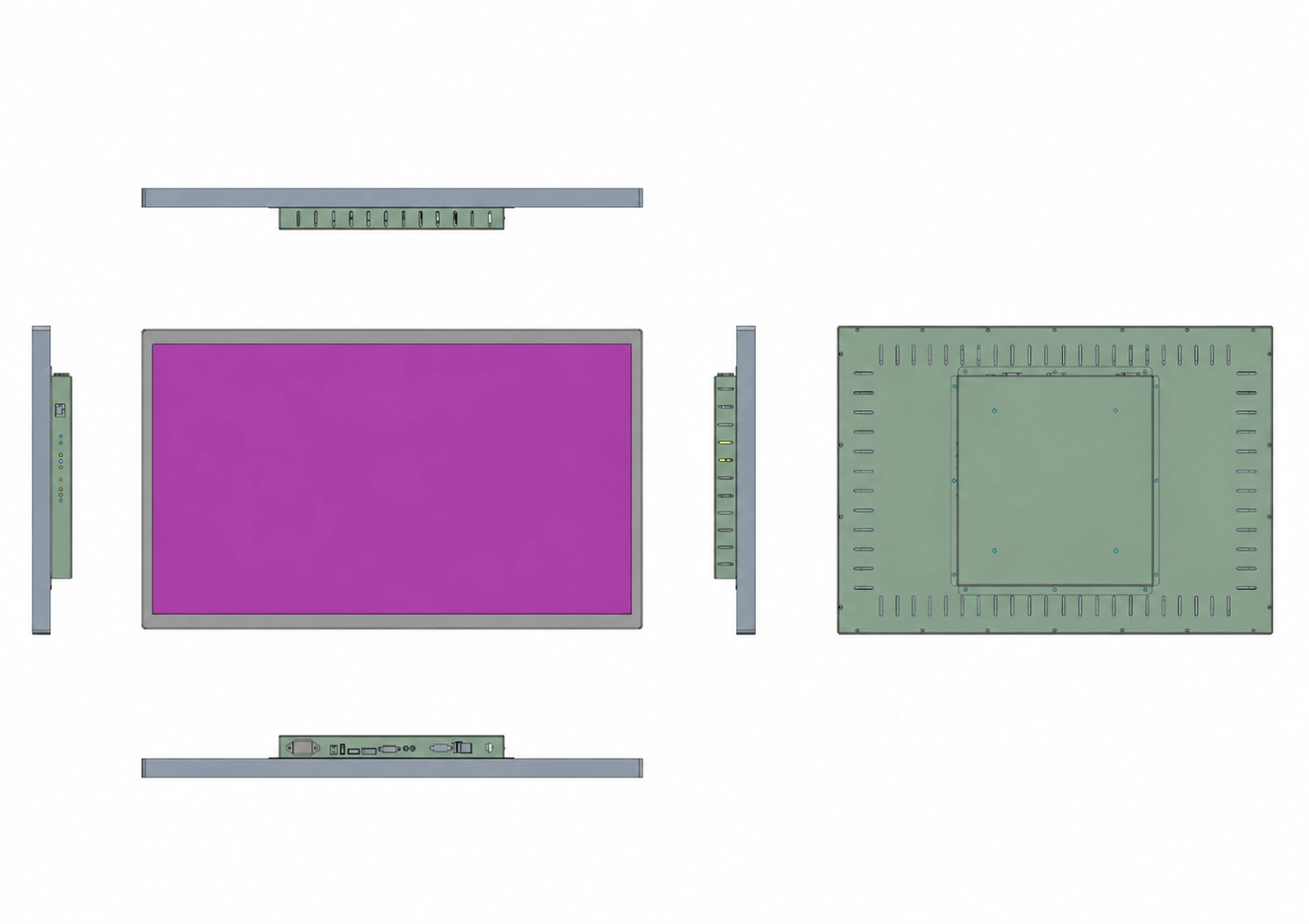

8. Product Dimensions & Installation Drawing
Overall Size: 728.40 × 438.68 mm Corner Radius: R5.28 Overall Thickness: 52.80 mm Rear Box Protrusion: 23.00 mm Rear Mounting Area: 300 × 200 mm Mounting Hole: M5 Structure: Metal rear housing Installation: Embedded / rear mounting
Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.
Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.
Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.
Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.
Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.
When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating.
