Screen Size :27″32″43″49″55″
Touch Type :PCAP capacitive
Touch Points :10-point touch
Resolution :3840*2160（4K）
Brightness :300 cd/m
Aspect Ratio :16:9
Interface :DP/HDMI/VGA
protocol :3M TTL HID RS232
Housing Material :Metal housing
Custom Service : YES
Product Type : LED Lighted Capacitive Touch Monitor
Size Engineering : Custom size development available
Display Resolution : HD / FHD / 2K / 4K (optional)
Touch Technology : Projected Capacitive Touch (10-point)
Touch Interface : USB Type-B
Video Input : DP/HDMI /DVI/ VGA (optional)
Frame Construction : Aluminum Alloy / Metal Housing
Mounting Method : VESA / Embedded / Wall-mount / Desktop Stand
Certifications : CE / FCC / RoHS / EMC / LVD
Operating Condition : Indoor / Semi-outdoor optional
Touch Glass : Thickness / anti-glare / anti-fingerprint optional
Structural Design : Flat / Curved / Open frame / Embedded / J-shape
Front Frame Color : Black / Silver / White / Custom color
Lighting System : RGB LED / Edge light / Perimeter light customization
Interface Engineering : USB / HDMI / VGA / RS232 / RS485 customization
Logo Integration : Silk print / metal logo / backlight logo optional
Packaging Solution : OEM carton / protective foam / drop-test packaging
Project Integration : Kiosk / industrial cabinet / commercial device integration

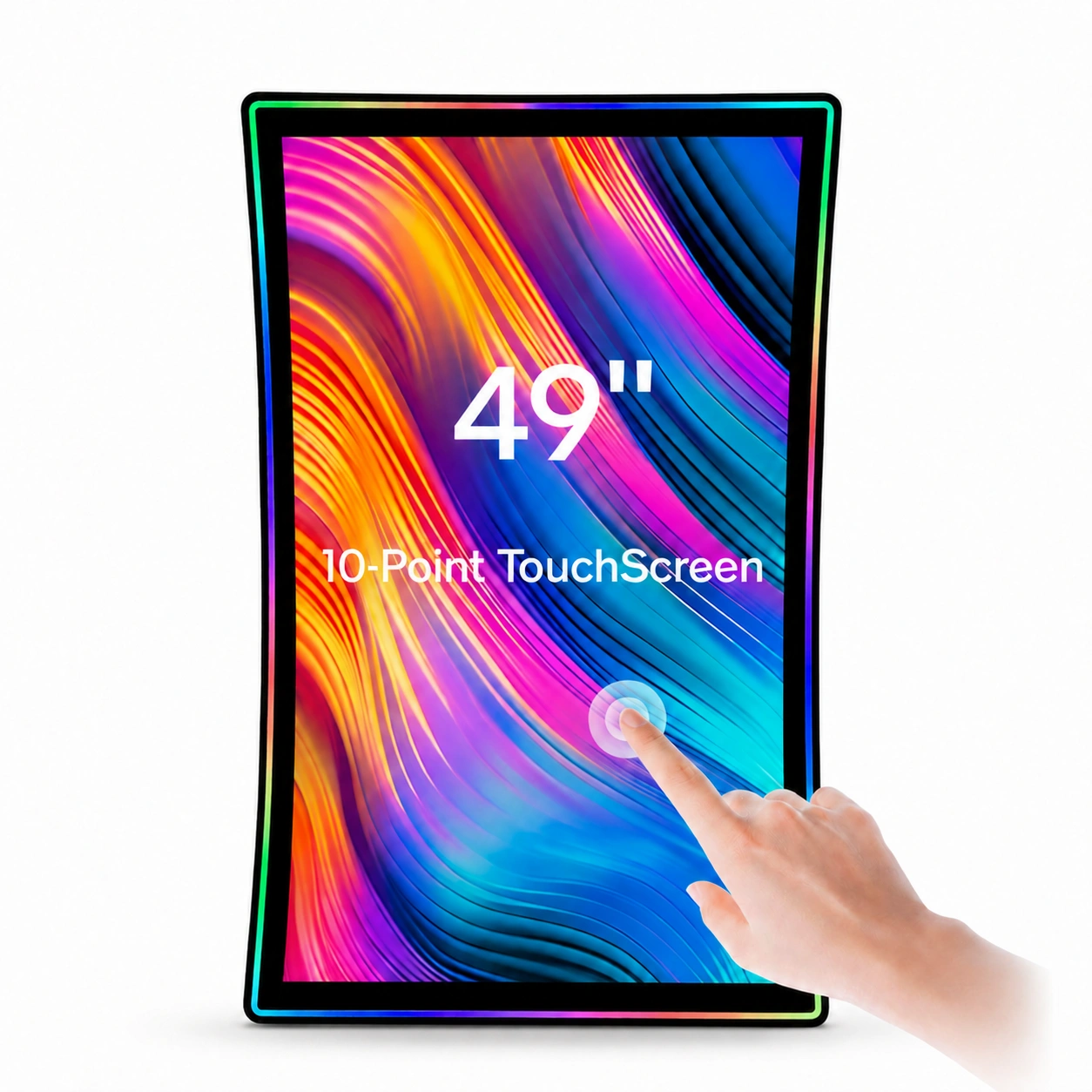

1. Product Positioning
49-inch C-curved capacitive touch all-in-one display designed for commercial interactive applications. It combines 4K display, immersive curved viewing, capacitive touch control, and RGB running light effects, making it ideal for self-service kiosks, gaming equipment, and interactive advertising displays.
2. C-Curved Design
The customized concave curved screen delivers stronger visual wraparound and immersion than a flat display, creating greater visual impact for gaming and interactive display scenarios.
3. 10-Point Capacitive Touch
Equipped with capacitive touch technology, it supports accurate multi-point touch, fast response, strong anti-interference performance,
4. RGB Colorful Running Light Effect
Dynamic RGB ambient lights around the screen support customizable colors, modes, and rhythm, creating a strong technology-style visual effect and improving product recognition.
5. Industrial-Grade Aluminum Frame
The high-strength aluminum alloy frame is durable and provides excellent heat dissipation, suitable for long-term commercial operation. The housing supports customized painting and silk-screen printing.
6. Interface Introduction
1. 110/220V Power Input 2. Power Switch 3. Audio Output 4. Audio Input 5. VGA Signal 6. DP Signal 7. HDMI Signal 8. Touch Direction Switch 9. USB Touch Port 1 10. USB Touch Port 2 11. Touch Direction Indicator 12. RS232 Touch Port 13. LED Mode + 14. LED Speed 15. LED Light Switch: Cabinet / Single Screen 16. LED Mode – 17. LED Signal Port for Cabinet Light Card
7. Product Specifications
LCD Panel Specifications
Screen Size: 49 inch Radius: R1500 Aspect Ratio: 16:9 Backlight: LED Backlight Life: 50,000+ hours Resolution: 3840*2160 Brightness: 300 cd/m² Contrast Ratio: 1200:1 Response Time: 5 ms Pixel Pitch: 0.27963 (H) × 0.27963 (V) mm Color: 1.07B Viewing Angle: Full viewing angle, horizontal/vertical
Capacitive Touch Specifications
Touch Solution ： Projected G+FF capacitive touch technology Response Time ： <5 ms Touch Points ： Standard 10-point touch, supports image zoom i Scanning Accuracy ： 4096 × 4096 Communication ： Full-speed USB2.0, USB3.0 Theoretical Clicks ： 60 million+ Light Resistance ： Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes Touch Data Output ： Coordinate output Surface Hardness ： Tempered glass, Mohs 7 explosion-proof glass OS Compatibility： Android / Windows Driver ： Driver-free, plug and play Protocol ： 3M TTL HID RS232 Product accessories: Power cord 1.5m, HDMI1.5m, VGA 1.5m USB 1.5m, touch cable 1.5m, LED remote control,

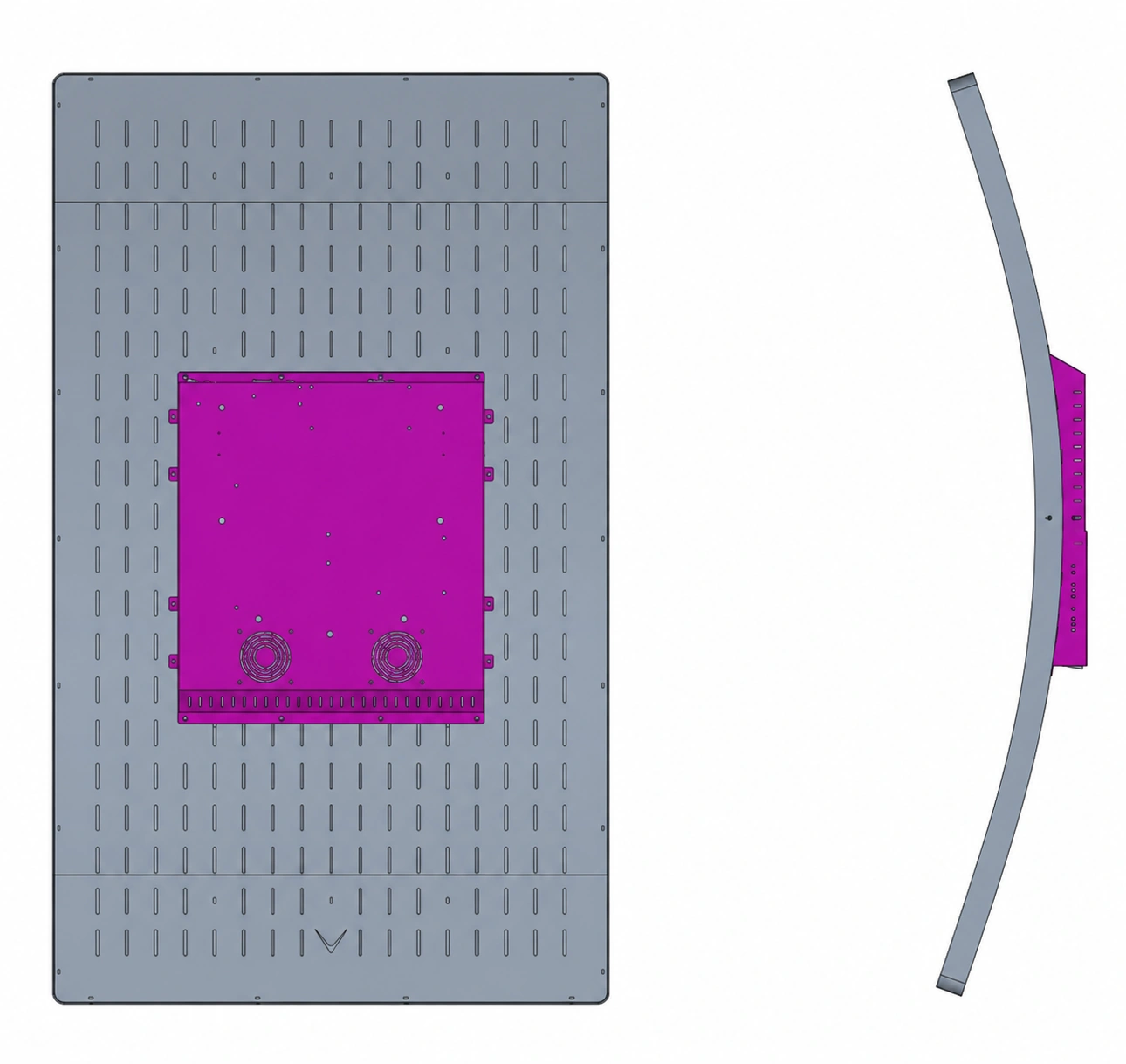

8. Product Dimensions & Installation Drawing
Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.
Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.
Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.
Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.
Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.
When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating.
