1. Product Positioning

This 55-inch 4K S-Shaped Capacitive Touch LED Display integrates 4K high-definition display, 10-point capacitive touch, RGB LED frame lighting, and an industrial-grade metal housing. It is designed for high-end commercial interactive equipment, customized cabinets, smart display terminals, entertainment systems, and special-shaped display applications. Compared with standard flat displays, this product provides stronger visual impact, a more distinctive appearance, and an enhanced interactive user experience.

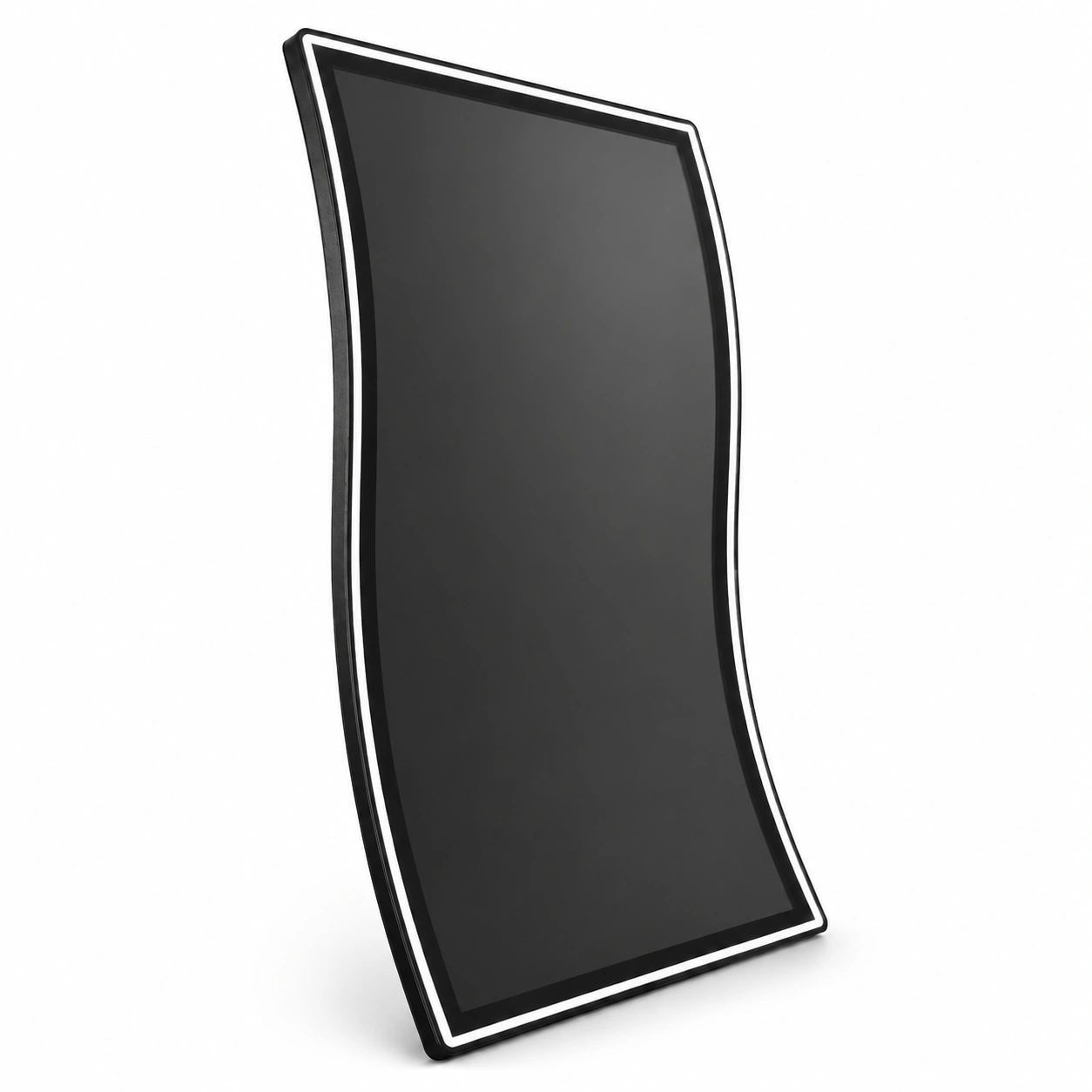

2. S-Shaped Design

The display features a unique J-shaped curved structure, delivering a modern and high-tech appearance. The special curved body creates strong product recognition and makes it suitable for customized projects and high-end equipment integration. The J-shaped design not only improves the product appearance but also enhances the overall visual presentation of the final equipment.

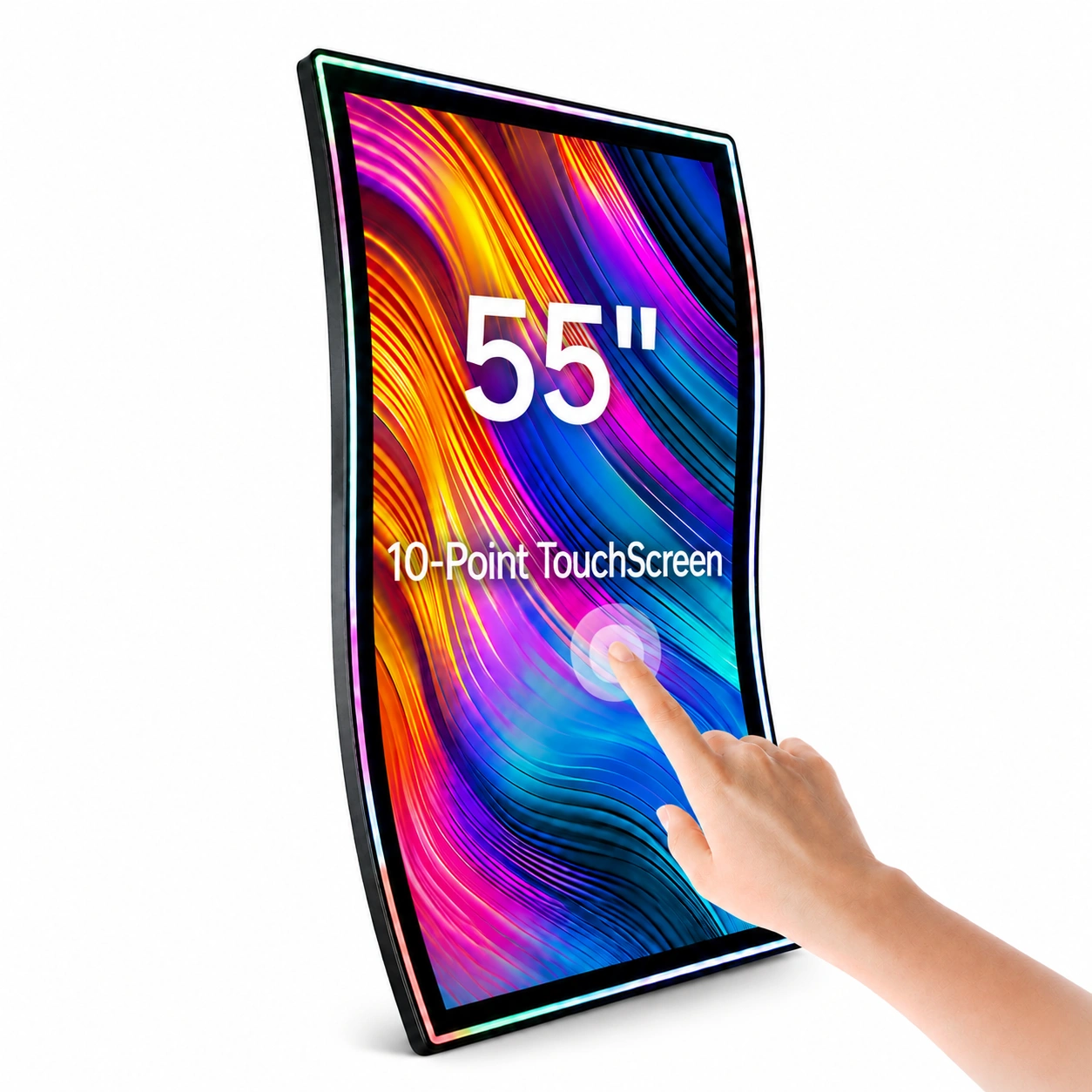

3. 10-Point Capacitive Touch

Equipped with high-sensitivity capacitive touch technology, the display supports 10-point touch control with fast response, accurate positioning, and smooth operation.It supports tap, swipe, zoom, and other multi-touch gestures, making it suitable for high-frequency commercial interaction and long-term operation.

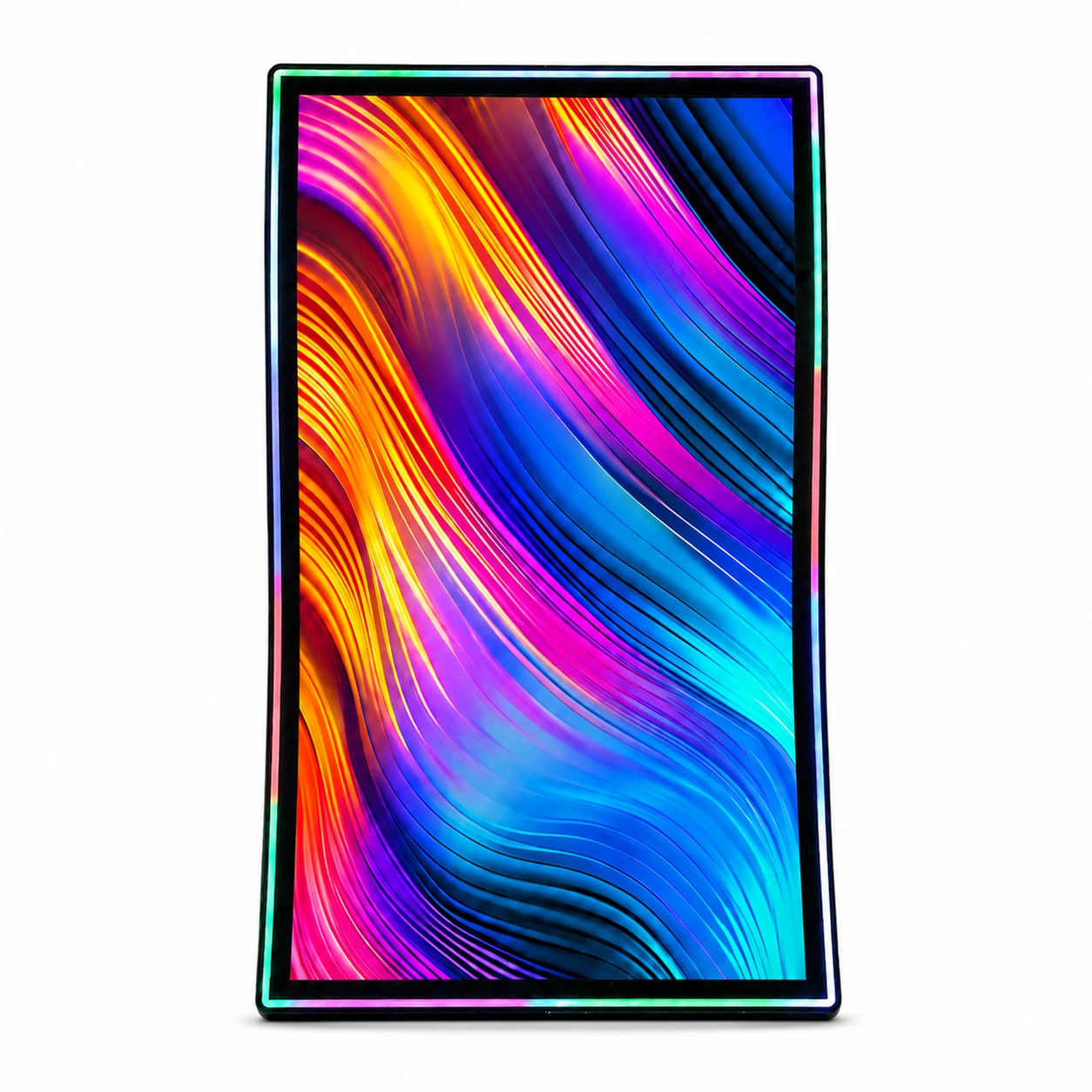

4. RGB Colorful Running Light Effect

The display frame is integrated with RGB LED lighting effects, creating colorful illumination and enhancing the product’s visual appeal.The RGB lighting can be customized according to the customer’s equipment design, helping the final product stand out in different commercial environments.

5. Industrial-Grade Aluminum Frame

The display is built with an industrial-grade metal housing, providing high strength, stable structure, excellent heat dissipation, and long-term durability.The solid rear structure supports embedded installation, equipment integration, and continuous commercial operation. The metal housing improves deformation resistance and overall structural reliability.

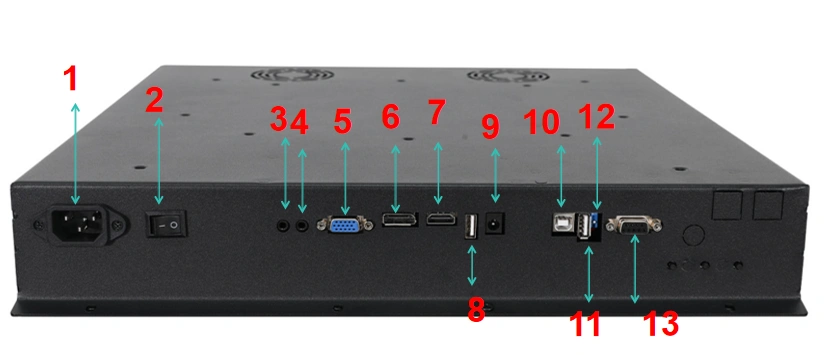

6. Interface Introduction

1. 110/220V Power Input 2. Power Switch 3. Audio Output 4. Audio Input 5. VGA Signal 6. DP Signal 7. HDMI Signal 8. USB Touch Port 1 9. Power Input 10. USB Touch Port 2 11. USB Touch Port 3 12. Toggle switch 13. RS232 Touch Port

7. Product Specifications

LCD Panel Specifications

Screen Size: 55 inch Aspect Ratio: 16:9 Backlight: LED Backlight Life: 50,000+ hours Resolution: 3840 × 2160 (4K) Brightness: 300 cd/m² Contrast Ratio: 1200:1 Response Time: 5 ms Pixel Pitch: 0.27963 (H) × 0.27963 (V) mm Color: 1.07B Viewing Angle: Full viewing angle, horizontal/vertical

Capacitive Touch Specifications

Touch Solution ： Projected G+FF capacitive touch technology Response Time ： <5 ms Touch Points ： Standard 10-point touch, supports image zoom i Scanning Accuracy ： 4096 × 4096 Communication ： Full-speed USB2.0, USB3.0 Theoretical Clicks ： 60 million+ Light Resistance ： Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes Touch Data Output ： Coordinate output Surface Hardness ： Tempered glass, Mohs 7 explosion-proof glass OS Compatibility： Android / Windows Driver ： Driver-free, plug and play Protocol ： 3M TTL HID RS232 Product accessories: Power cord 1.5m,DP 1.5m, HDMI 1.5m, USB 1.5m, touch cable 1.5m, LED remote control,Six screws(6*12)

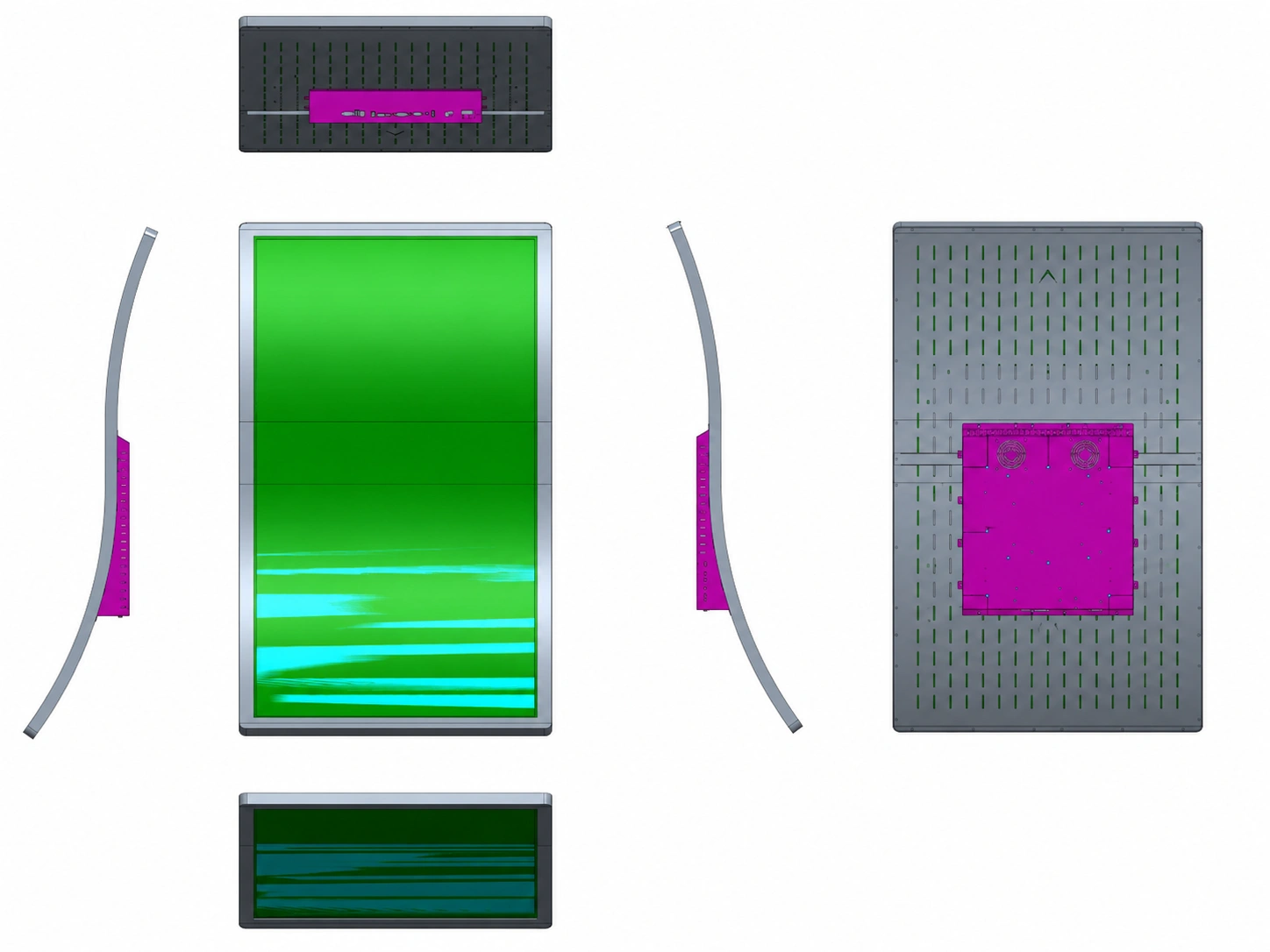

8. Product Dimensions & Installation Drawing

1. Overall Dimensions Overall Size: 764(W) × 1253.15(H) mm Width (W): 764 mm Height (H): 1253.15 mm Display Orientation: Vertical Curved Design: Yes

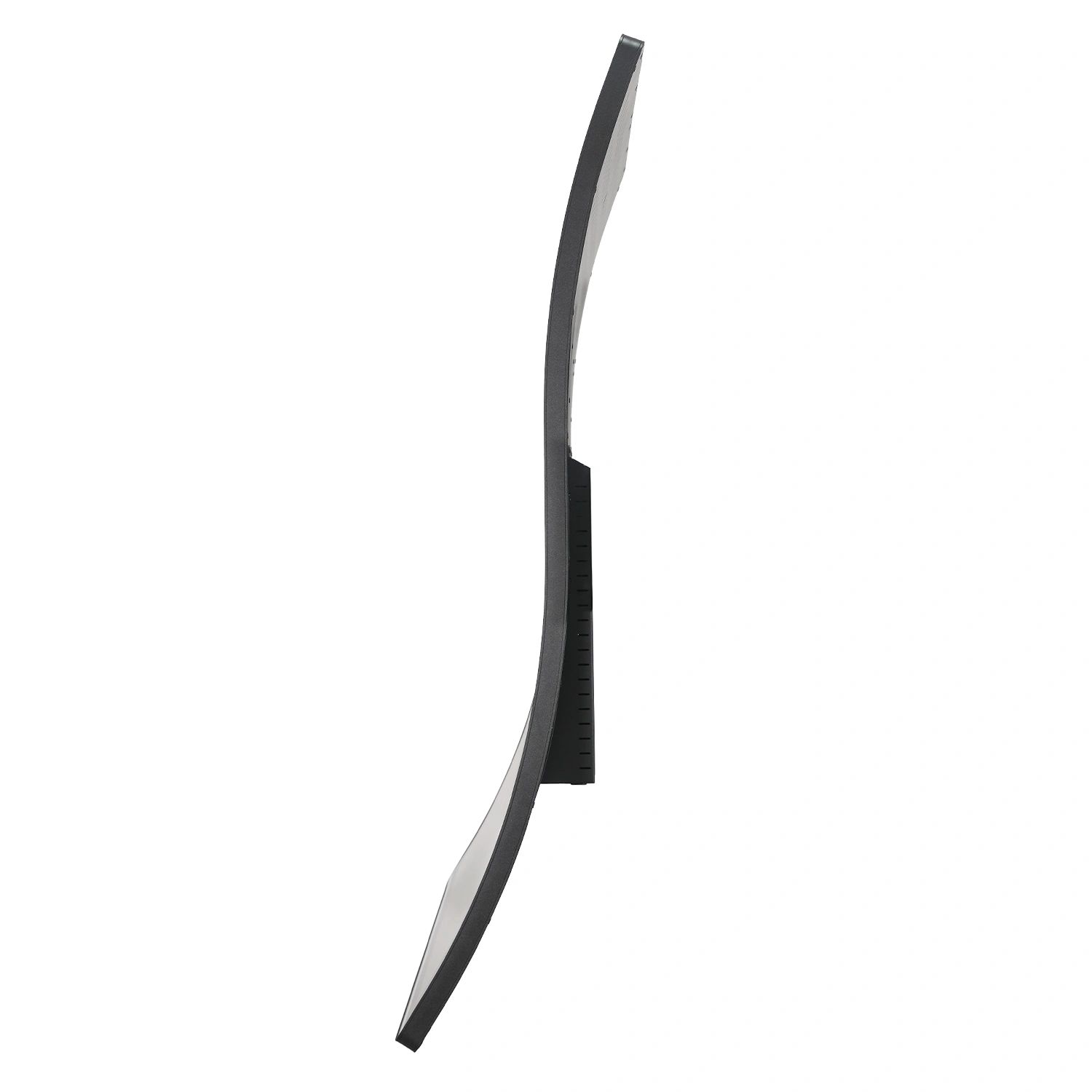

2. Side & Thickness Side Thickness: 69.96 mm Maximum Thickness: 69.96 mm Side Profile: Curved Structure Curvature Design: Ergonomic curved panel housing

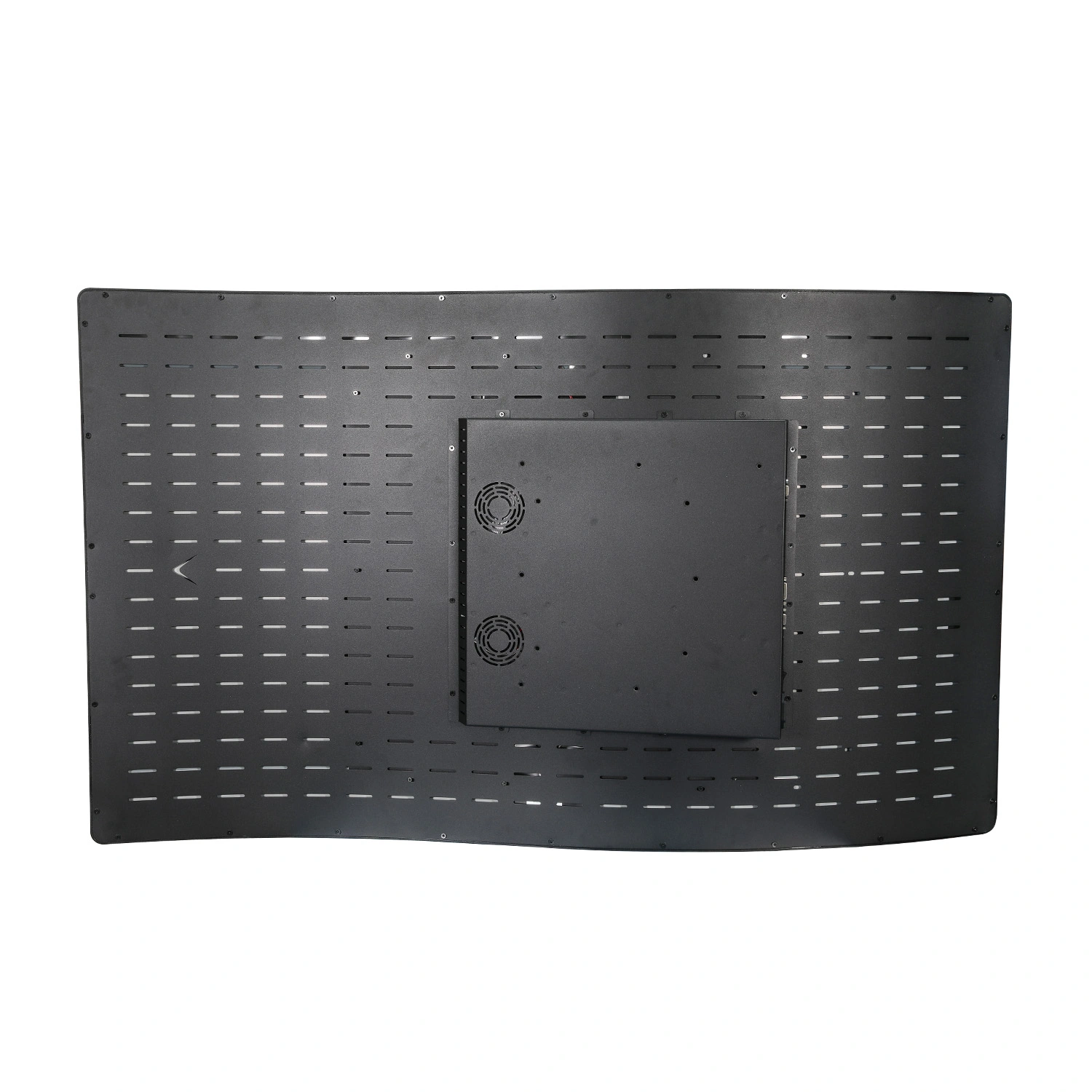

3. Installation Reference Installation Reference: Rear Mounting Hole Pattern: 300 × 200 mm Mounting Bracket Area: 200 × 235 mm Installation Type: Embedded / Custom Cabinet Installation Rear Cover Design: Ventilation slots + VESA mounting structure
